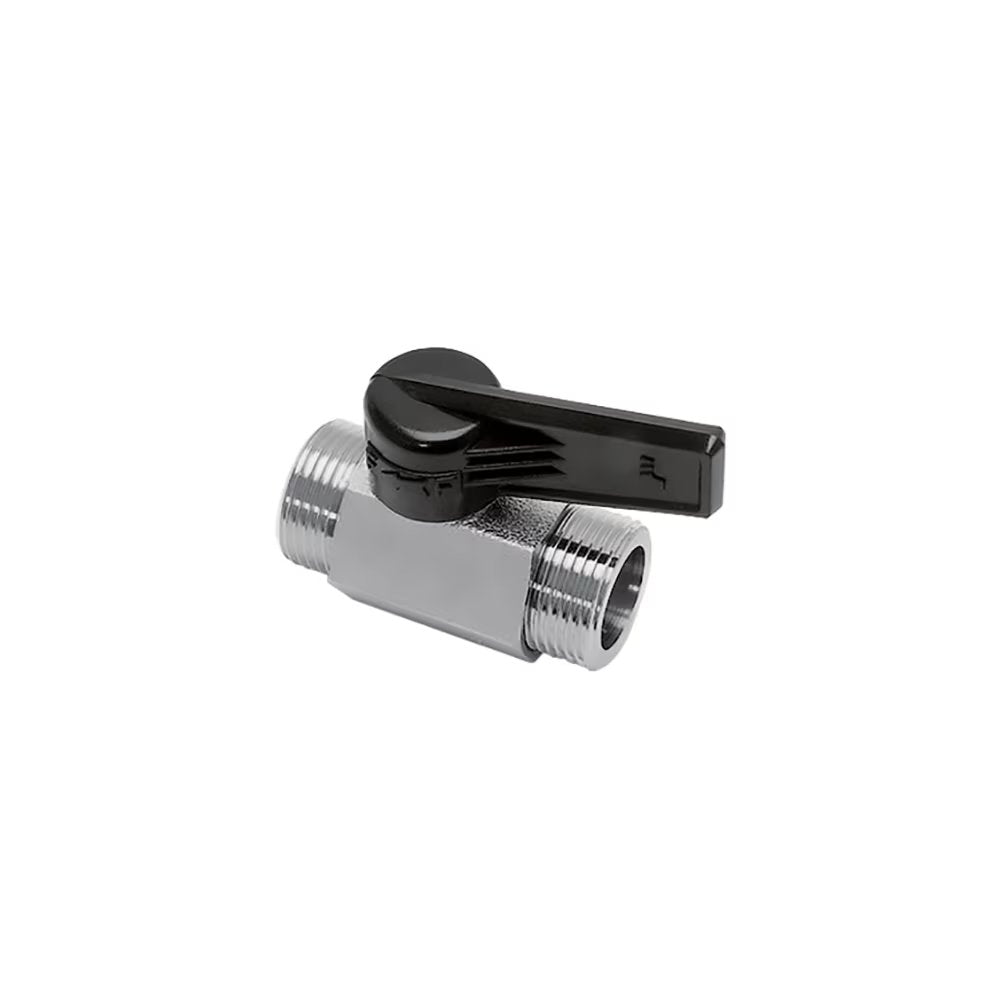

0490 10 21 by Parker | Legris In-Line Ball Valve | 1/2" Male BSPP Thread | 24 mm Hex | 74 mm Length | Straight | Nickel-Plated Brass | Pack of 5

0490 10 21 by Parker | Legris In-Line Ball Valve | 1/2" Male BSPP Thread | 24 mm Hex | 74 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$209.64

by Parker Hannifin
Universal Light Series:0490 2/2 In-Line Ball Valve, Male BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $197.06
30–59 $178.19
60+ $157.23
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0490 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Male BSPP
  • 1/2in Male BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Industrial fluids
  • Working Pressure: Vacuum up to 12 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Compactness
  • Corrosion resistance due to chemical nickel plating
  • Automatic compensation of seal wear
  • Repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Shot-blasted brass or shot-blasted nickel-plated brass
  • Stem: Brass
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Wear-compensation seal: NBR
  • Lever: Polymer or Zamak
Part Number Diameter Nominal (DN) C E F H L L1 M Kg
0490 04 13 4 mm 1/4" 7 mm 17 mm 34 mm 39 mm 17 mm 35 mm .070 Kg
0490 10 21 10 mm 1/2" 10 mm 24 mm 44 mm 53 mm 24 mm 50 mm .160 Kg

Technical polymer handle

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
