01VS03020601 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed Single Solenoid Pilot/Spring Return G-Thread 1/8" | 220V AC/5VA coil | Black Con
01VS03020601 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed Single Solenoid Pilot/Spring Return G-Thread 1/8" | 220V AC/5VA coil | Black Con
AIGNEP

01VS03020601 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed Single Solenoid Pilot/Spring Return G-Thread 1/8" | 220V AC/5VA coil | Black Con

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

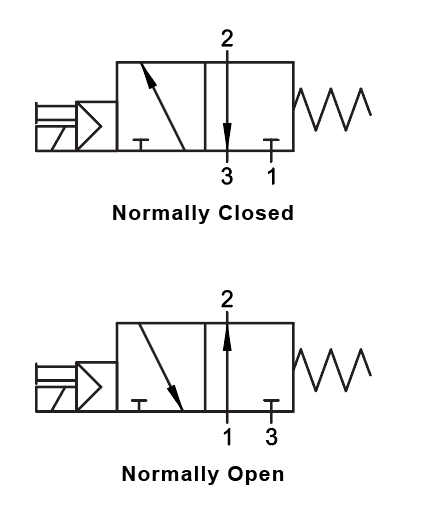

SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body (1/8 - 1/4 - 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VS03NC020101 01VS03NC020102 12V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC020201 01VS03NC020202 24V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC020301 01VS03NC020302 24V DC 2W 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC020401 01VS03NC020402 24V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC020501 01VS03NC020502 110V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC020601 01VS03NC020602 220V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC050101 01VS03NC050102 12V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"
01VS03NC050201 01VS03NC050202 24V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"
01VS03NC050301 01VS03NC050302 24V DC 2W 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"
01VS03NC050401 01VS03NC050402 24V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"
01VS03NC050501 01VS03NC050502 110V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"
01VS03NC050601 01VS03NC050602 220V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
