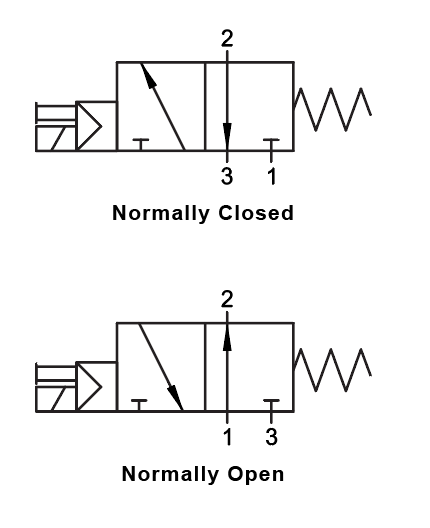

01VS03020201 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed Single Solenoid Pilot/Spring Return G-Thread 1/8" | 24V DC/3W coil | Black Con
01VS03020201 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed Single Solenoid Pilot/Spring Return G-Thread 1/8" | 24V DC/3W coil | Black Con

01VS03020201 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed Single Solenoid Pilot/Spring Return G-Thread 1/8" | 24V DC/3W coil | Black Con

Sale price$74.98
Buy More, Save More!
Quantity Price Each
10–39 $70.48
40–79 $63.73
80+ $56.24
Discounts applied in cart/checkout.

Product Data:

Series:
  • 01V Control Valves Series
Ends Configuration:
  • 1/8in Female BSPP
  • 1/8in Female BSPP
  • Some Ends Match
Material(s):
  • Plastic
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body (1/8 - 1/4 - 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VS03NC020101 01VS03NC020102 12V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC020201 01VS03NC020202 24V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC020301 01VS03NC020302 24V DC 2W 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC020401 01VS03NC020402 24V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC020501 01VS03NC020502 110V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC020601 01VS03NC020602 220V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/8"
01VS03NC050101 01VS03NC050102 12V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"
01VS03NC050201 01VS03NC050202 24V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"
01VS03NC050301 01VS03NC050302 24V DC 2W 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"
01VS03NC050401 01VS03NC050402 24V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"
01VS03NC050501 01VS03NC050502 110V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"
01VS03NC050601 01VS03NC050602 220V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) G 1/2"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
