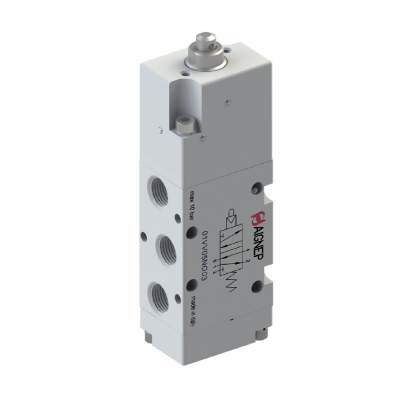

01VN050002N by AIGNEP | 01V Series | 5 way/2 position | Servo-Piloted Whisker Spring Return | 1/8" NPT
01VN050002N by AIGNEP | 01V Series | 5 way/2 position | Servo-Piloted Whisker Spring Return | 1/8" NPT
AIGNEP

01VN050002N by AIGNEP | 01V Series | 5 way/2 position | Servo-Piloted Whisker Spring Return | 1/8" NPT

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SERVO-PILOTED WHISKER VALVES
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: 2 ÷ 10 bar
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number (Normally Closed) Part Number (No Funtion) Ways Reactuation Size
01VN03NC02N
01VN03NC02 		- 3/2 Monostable Spring Return 1/8"
- 01VN050002N
01VN050002 		5/2 Monostable Spring Return 1/8"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
