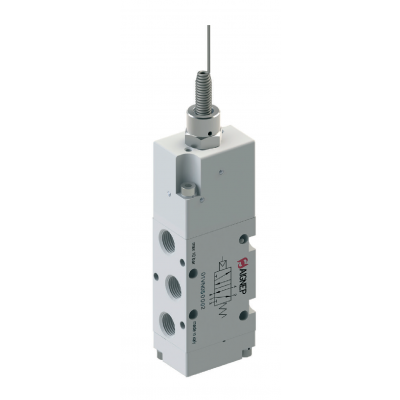

01VN050002 by AIGNEP | 01V Series | 5 way/2 position | Servo-Piloted Whisker Spring Return | 1/8" BSPP
01VN050002 by AIGNEP | 01V Series | 5 way/2 position | Servo-Piloted Whisker Spring Return | 1/8" BSPP

01VN050002 by AIGNEP | 01V Series | 5 way/2 position | Servo-Piloted Whisker Spring Return | 1/8" BSPP

Sale price$53.86
Buy More, Save More!
Quantity Price Each
10–39 $50.63
40–79 $45.78
80+ $40.40
Discounts applied in cart/checkout.

Product Data:

Series:
  • 01V Series
Ends Configuration:
  • 1/8in Female BSPP
  • 1/8in Female BSPP
  • Some Ends Match
Material(s):
  • Plastic
SERVO-PILOTED WHISKER VALVES
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: 2 ÷ 10 bar
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number (Normally Closed) Part Number (No Funtion) Ways Reactuation Size
01VN03NC02N
01VN03NC02 		- 3/2 Monostable Spring Return 1/8"
- 01VN050002N

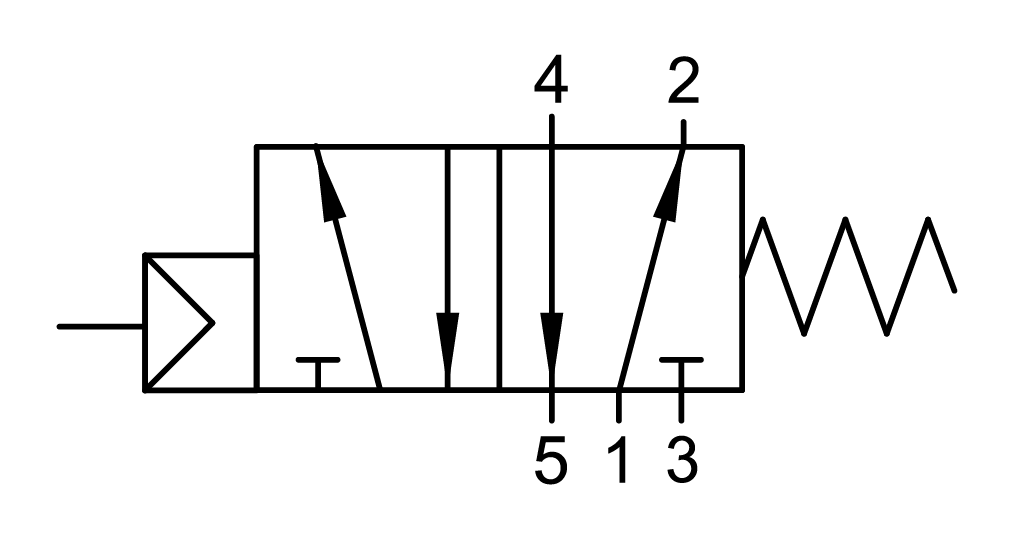

01VN050002 		5/2 Monostable Spring Return 1/8"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
