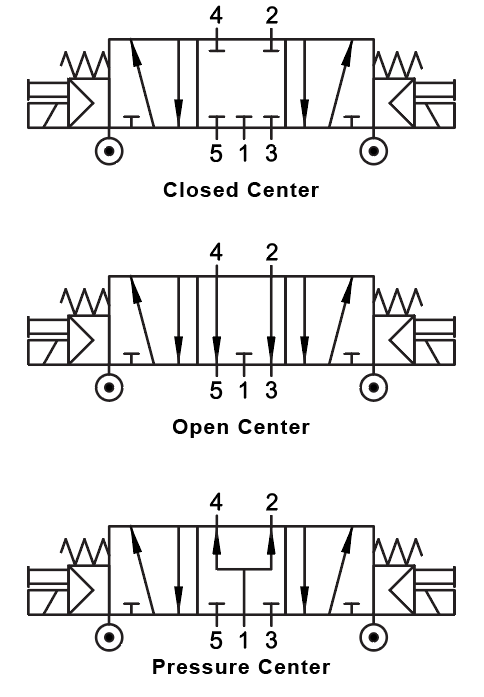

01VA07CC020101 by AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Ext Pilot | Closed Center | Spring Centered | G-Thread 1/8" | 12V DC/3 W coil | Black Con
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $102.40 |
| 20–59 | $92.60 |
| 60+ | $81.71 |
Discounts applied in cart/checkout.
Product Data:
Series:
Ends Configuration:
Material(s):
| Technical Characteristics: | |||
|---|---|---|---|
| Operating Rating: | 0 ÷ 10 bar 0 ÷ 145 psi |
Operating Pressure: | Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi |
| Temperature: | Min: 14°F (-10°C) Max: 140°F (60°C) |
Component Parts and Materials: | • Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals |
| Part Number | Solenoid Voltage | Minimum Power | Ways | Reactuation | Function | Size |
|---|---|---|---|---|---|---|
| 01VA07CC020101 | 12V DC | 3W | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/8" |
| 01VA07CC020201 | 24V DC | 3W | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/8" |
| 01VA07CC020301 | 24V DC | 2W | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/8" |
| 01VA07CC020401 | 24V AC | 5VA | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/8" |
| 01VA07CC020501 | 110V AC | 5VA | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/8" |
| 01VA07CC020601 | 220V AC | 5VA | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/8" |
| 01VA07CC030101 | 12V DC | 3W | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/4" |
| 01VA07CC030201 | 24V DC | 3W | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/4" |
| 01VA07CC030301 | 24V DC | 2W | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/4" |
| 01VA07CC030401 | 24V AC | 5VA | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/4" |
| 01VA07CC030501 | 110V AC | 5VA | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/4" |
| 01VA07CC030601 | 220V AC | 5VA | 5/3 | Monostable Spring Return | Closed Center (CC) | G 1/4" |
