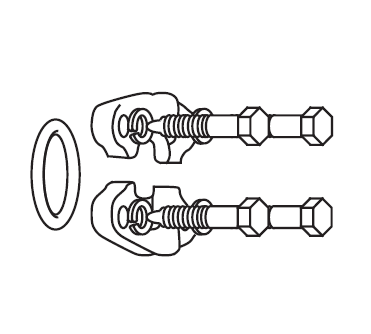

FF687-16 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Viton O-Ring | Complete Kit | 1" Flange Size | Steel
Aeroquip® by Danfoss
SAE Code 61 Split Flange Kit (SAE J518) with Viton O-Ring (Complete Kit)
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $18.02 |
| 40–79 | $16.29 |
| 80+ | $14.38 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Ends Configuration:
Material(s):
Seal Material(s):
| Technical Info: | |||
|---|---|---|---|
| Specifications: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Components Included in Complete Kit: | |||||||||
| Complete Kit Part Number |
Flange Halves (2 required) Part Number |
Viton O-Ring (1 required) Part Number |
Bolts (4 required) Part Number |
Lock washer (4 required) Part Number |
Nominal Flange Size |
A | B | C | Bolt torque lb.-in |
| FF687-12 | 449-74446-12 | 22046-214 | FF9442-0620-94 | 210104-6S | 3/4" | 1.88" | 0.88" | 0.41" | 250-350 |
| FF687-16 | 449-74446-16 | 22046-219 | FF9442-0620-94 | 210104-2-6S | 1" | 2.06" | 1.04" | 0.41" | 325-425 |
| FF687-20 | 449-74446-20 | 22046-222 | FF9442-0724-94 | 210104-7S | 1-1/4" | 2.31" | 1.18" | 0.48" | 425-550 |
| FF687-24 | 449-74446-24 | 22046-225 | FF9442-0824-94 | 210104-8S | 1-1/2" | 2.75" | 1.40" | 0.53" | 550-700 |
| FF687-32 | 449-74446-32 | 22046-228 | FF9442-0824-94 | 210104-8S | 2" | 3.06" | 1.68" | 0.53" | 650-800 |
Viton is a trademark of The Chemours Company FC, LLC.
