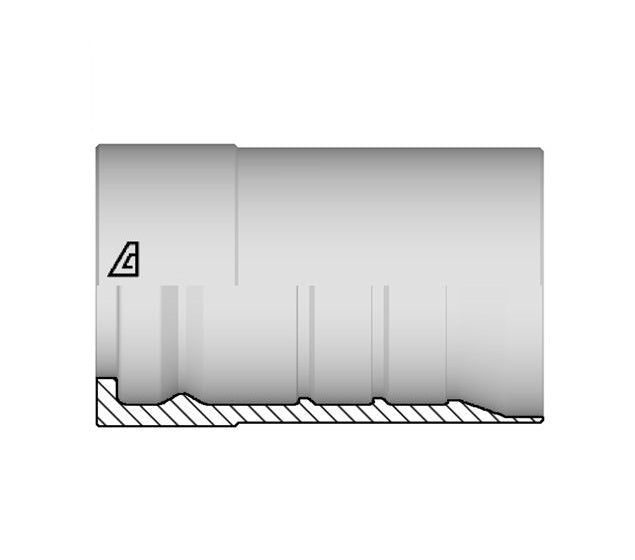

ZF1-32 Alfagomma by Kuriyama | ZF1 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule | -32 Hose Dash Size | 2" Hose ID | Steel

ZF1-32 Alfagomma by Kuriyama | ZF1 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule | -32 Hose Dash Size | 2" Hose ID | Steel

Sale price$137.21

Kuriyama of America Inc.
Alfagomma | ZF1 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule
Buy More, Save More!
Quantity Price Each
5–19 $128.98
20–59 $116.63
60+ $102.91
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • ZF1 Series
Material(s):
  • Steel
About ZF1 Series Fittings:
  • Two piece Interlock ferrule for use with "X" Interlock insert on spiral wire reinforced hoses. Requires internal and external skiving.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size B
OD		 L
Length		 Weight
Dash
Size		 (in.) (mm) (mm) (mm) lbs/each
ZF1-32 32 2" 50.8mm 88mm 108.2mm 3.30 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
