Z-3232-MHUN Alfagomma by Kuriyama | Z Series | Two-Piece Hydraulic Hose Fitting | -32 Hose ID x -32 Male Hammer Union Fig. 1502 Integral Fitting with Lug Nut

Z-3232-MHUN Alfagomma by Kuriyama | Z Series | Two-Piece Hydraulic Hose Fitting | -32 Hose ID x -32 Male Hammer Union Fig. 1502 Integral Fitting with Lug Nut

Sale price$270.14

Kuriyama of America Inc.
Alfagomma | Z Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male Hammer Union Fig. 1502 Integral Fitting with Lug Nut

Use with Alfabiotech 6000 and 10K Cementing Hoses.
Buy More, Save More!
Quantity Price Each
5–14 $253.93
15–29 $229.62
30+ $202.61
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • Z Series
Shape:

Straight
About Z Series Fittings:
  • Two-piece Interlock insert for Alfatech 6000 (AT6K) in 2" size only.
  • Requires both internal and external skiving and a ZF1 Interlock ferrule to perform properly.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.

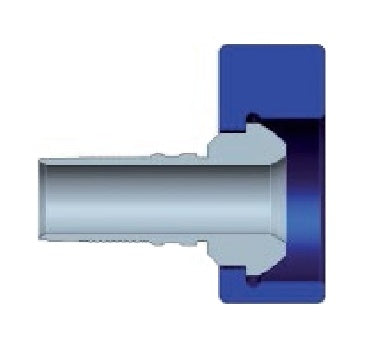

Male Hammer Union | Fig. 1502 | Integral Fitting with Lug Nut
Part Number Dash Size Hose ID Size C
Cut-Off
Factor		 L
Overall Length		 Weight
in mm mm mm lbs/each
Z-3232-MHUN 32 2" 50.8mm 60.8mm 162.2mm 14.55 lbs
Female Hammer Union | Fig. 1502 | Integral Fitting With Rubber Ring
Part Number Dash Size Hose ID Size C
Cut-Off
Factor		 L
Overall Length		 Weight
in mm mm mm lbs/each
Z-3232-FHUN 32 2" 50.8mm 57.3mm 158.7mm 5.73 lbs
