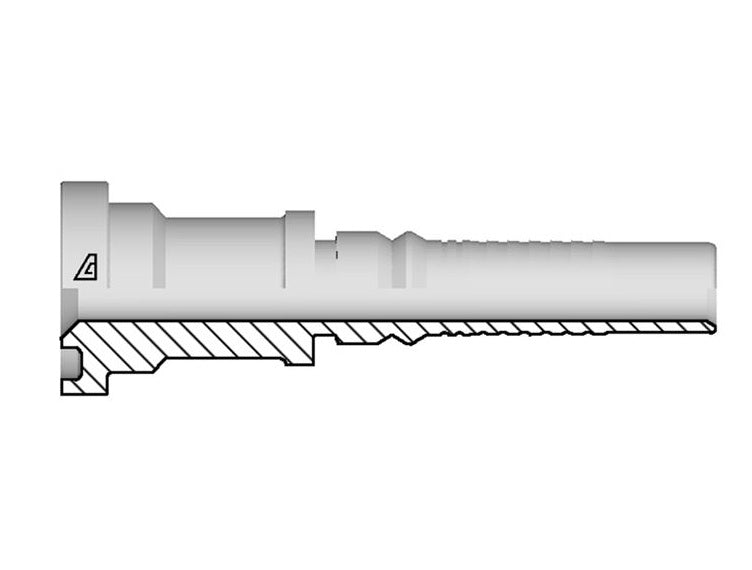

Z-3232-C62S Alfagomma by Kuriyama | Z Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | -32 Hose ID x -32 Code 62 O-Ring Flange Interlock | Steel

Z-3232-C62S Alfagomma by Kuriyama | Z Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | -32 Hose ID x -32 Code 62 O-Ring Flange Interlock | Steel

Sale price$174.76

Kuriyama of America Inc.
Alfagomma | Z Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 62 O-Ring Flange Interlock
Buy More, Save More!
Quantity Price Each
5–19 $164.27
20–59 $148.55
60+ $131.07
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • Z Series
Shape:

Straight
About Z Series Fittings:
  • Two-piece Interlock insert for Alfatech 6000 (AT6K) in 2" size only.
  • Requires both internal and external skiving and a ZF1 Interlock ferrule to perform properly.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size Q Flange C
Cut-Off Factor		 Max. Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) PSI lbs/each
Z-3232-C62S 32 2" 50.8mm 3.13" 79.4mm 104mm 6000 PSI 3.75 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
