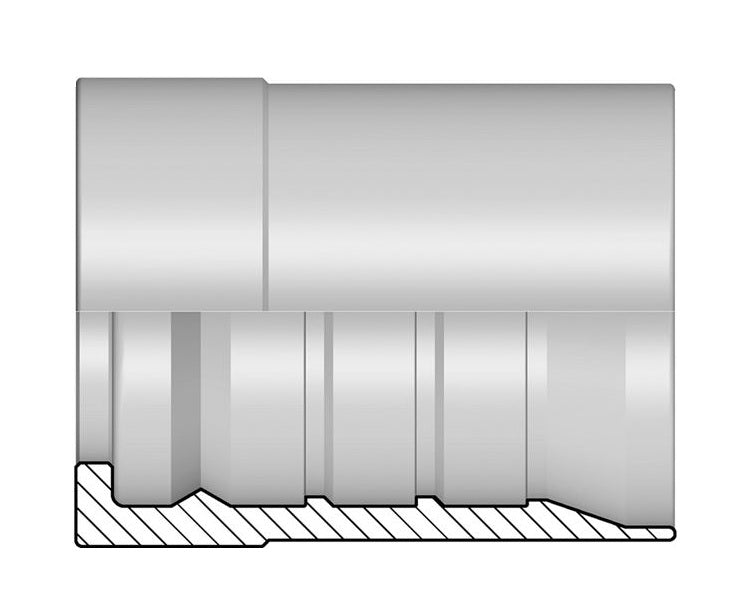

YS2-16 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -16 YS2 Interlock Skive Ferrule | Steel

YS2-16 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -16 YS2 Interlock Skive Ferrule | Steel

Sale price$20.36

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Fitting | YS2 Interlock Skive Ferrule
Buy More, Save More!
Quantity Price Each
10–39 $19.14
40–79 $17.31
80+ $15.27
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • Y Series
Material(s):
  • Steel
Part Number Dash Size Hose ID Size OD L Length Weight
in mm mm mm lbs/each
YS2-08 -08 1/2" 12.7mm 30.0mm 52.5mm 0.25 lbs
YS2-10 -10 5/8" 15.9mm 34.0mm 57.5mm 0.30 lbs
YS2-12 -12 3/4" 19.0mm 38.0mm 48.7mm 0.27 lbs
YS2-16 -16 1" 25.4mm 46.0mm 55.7mm 0.49 lbs
YS2-20 -20 1-1/4" 31.8mm 55.0mm 66.0mm 0.80 lbs
YS2-24 -24 1-1/2" 38.1mm 62.0mm 68.0mm 0.97 lbs
YS2-32 -32 2" 50.8mm 78.0mm 79.5mm 1.71 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
