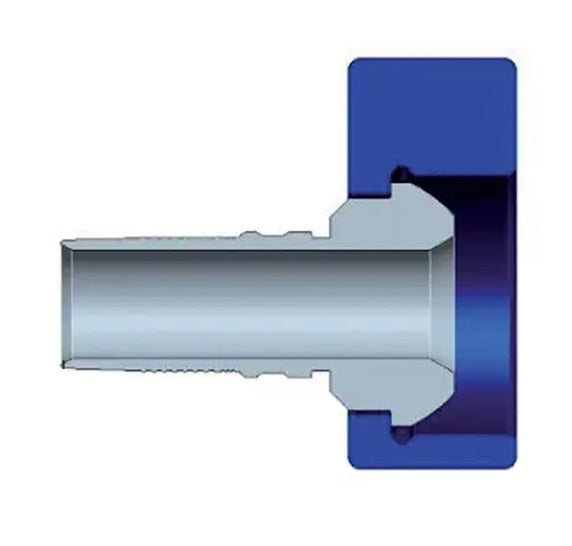

Y-3232-MHUN Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Figure 1502 | -32 Male Hammer Union Integral Fitting with Lug Nut x -32 Hose ID | Steel

Y-3232-MHUN Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Figure 1502 | -32 Male Hammer Union Integral Fitting with Lug Nut x -32 Hose ID | Steel

Sale price$247.34

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Figure 1502 | Male Hammer Union Integral Fitting with Lug Nut x Hose Barb

- Use with Alfabiotech 5000 and Flexor Rig hoses.
Buy More, Save More!
Quantity Price Each
5–19 $232.50
20–59 $210.24
60+ $185.51
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

Straight
Male Hammer Union | Fig. 1502 | Integral Fitting with Lug Nut
Part Number Dash Size Hose ID Size C
Cut-Off
Factor		 L
Overall Length		 Weight
in mm mm mm lbs/each
Y-3232-MHUN -32 2" 50.8mm 71.0mm 152mm 13.43 lbs
Female Hammer Union | Fig. 1502 | Integral Fitting With Rubber Ring
Part Number Dash Size Hose ID Size C
Cut-Off
Factor		 L
Overall Length		 Weight
in mm mm mm lbs/each
Y-3232-FHUN -32 2" 50.8mm 67.5mm 148.5mm 4.75 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
