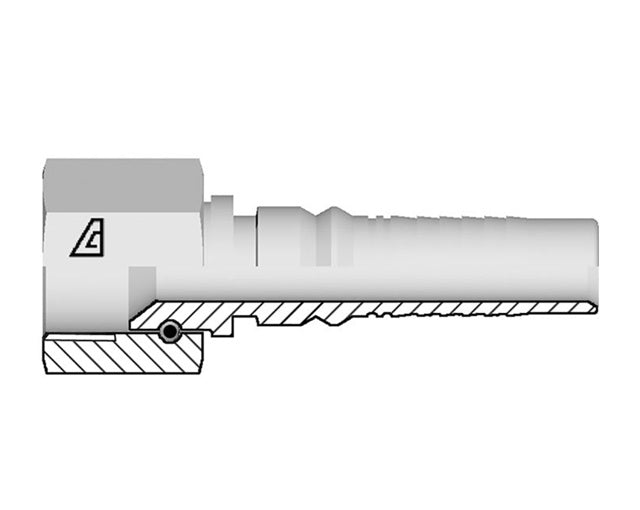

Y-3232-FJSH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -32 Female JIC 37° Swivel Seat Interlock x -32 Hose ID | Steel

Y-3232-FJSH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -32 Female JIC 37° Swivel Seat Interlock x -32 Hose ID | Steel

Sale price$127.98

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Female JIC 37° Swivel Seat Interlock x Hose Barb
Buy More, Save More!
Quantity Price Each
5–19 $120.30
20–59 $108.78
60+ $95.99
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • Y Series
Shape:

Straight
Part Number Hose ID Size F Thread C Cut-Off
Factor		 Hex Dia.
CH2		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm lbs/each
Y-1212-FJSH -12 3/4" 19.0mm -12 1-1/16-12 18.7mm 32mm 0.38 lbs
Y-1616-FJSH -16 1" 25.4mm -16 1-5/16-12 22.5mm 38mm 0.60 lbs
Y-2020-FJSH -20 1-1/4" 31.8mm -20 1-5/8-12 25.7mm 50mm 1.13 lbs
Y-2424-FJSH -24 1-1/2" 38.1mm -24 1-7/8-12 29.0mm 55mm 1.57 lbs
Y-3232-FJSH -32 2" 50.8mm -32 2-1/2-12 34.0mm 70mm 1.67 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
