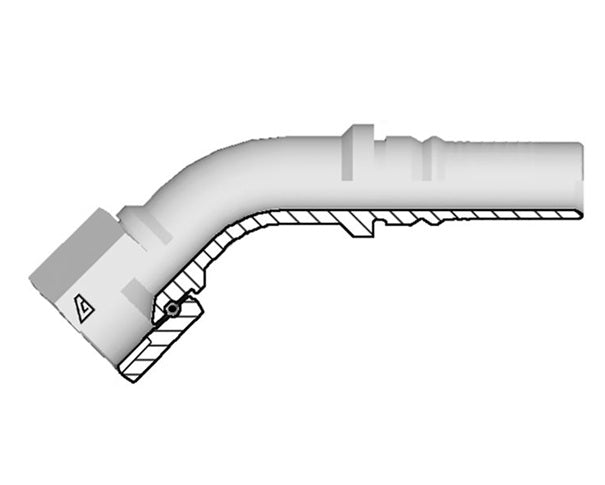

Y-3232-FJ45 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -32 Female JIC 37° Swivel Seat Interlock x -32 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | | 45° Elbow | Female JIC 37° Swivel Seat Interlock x Hose Barb
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $163.40 |
| 20–59 | $147.76 |
| 60+ | $130.37 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | F Thread | C Cut-Off Factor |
D Drop |
Hex Dia. CH1 |
Weight | |||
| Dash Size |
in | mm | Dash Size |
Size (in) - TPI |
mm | mm | mm | lbs/each | |
| Y-1212-FJ45 | -12 | 3/4" | 19.0mm | -12 | 1-1/16-12 | 66mm | 27.5mm | 32mm | 0.65 lbs |
| Y-1616-FJ45 | -16 | 1" | 25.4mm | -16 | 1-5/16-12 | 80mm | 31.0mm | 38mm | 1.01 lbs |
| Y-2020-FJ45 | -20 | 1-1/4" | 31.8mm | -20 | 1-5/8-12 | 93mm | 37.0mm | 50mm | 1.69 lbs |
| Y-2424-FJ45 | -24 | 1-1/2" | 38.1mm | -24 | 1-7/8-12 | 121mm | 40.5mm | 55mm | 2.63 lbs |
| Y-3232-FJ45 | -32 | 2" | 50.8mm | -32 | 2-1/2-12 | 148mm | 51.5mm | 70mm | 4.96 lbs |
