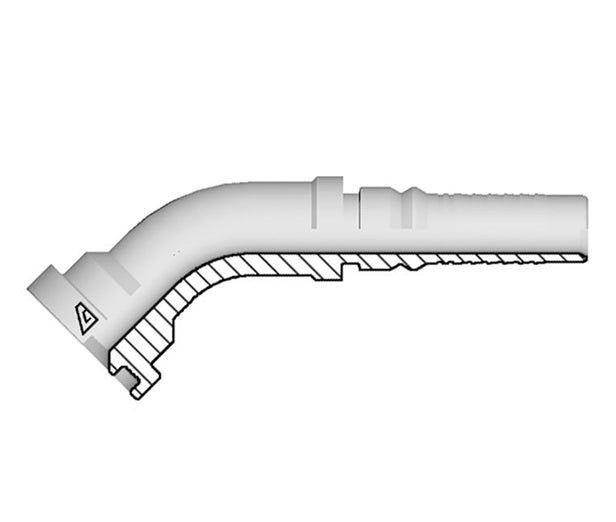

Y-2424-C624 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -24 Code 62 Flange Interlock x -24 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Code 62 Flange Interlock x Hose Barb
SAE J518
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $104.22 |
| 20–59 | $94.24 |
| 60+ | $83.15 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
D Drop |
Max Working Pressure |
Weight | |||
| Dash Size |
in | mm | in | mm | mm | mm | PSI | lbs/each | |
| Y-1212-C624 | -12 | 3/4" | 19.0mm | 1.63" | 41.3mm | 72.1mm | 30.0mm | 6000 PSI | 0.74 lbs |
| Y-1616-C624 | -16 | 1" | 25.4mm | 1.88" | 47.6mm | 94.8mm | 35.0mm | 6000 PSI | 1.12 lbs |
| Y-2020-C624 | -20 | 1-1/4" | 31.8mm | 2.13" | 54.0mm | 102.0mm | 39.5mm | 6000 PSI | 2.08 lbs |
| Y-2424-C624 | -24 | 1-1/2" | 38.1mm | 2.50" | 63.5mm | 136.3mm | 48.0mm | 6000 PSI | 2.67 lbs |
| Y-3232-C624 | -32 | 2" | 50.8mm | 3.13" | 79.4mm | 160.6mm | 63.0mm | 6000 PSI | 5.14 lbs |
