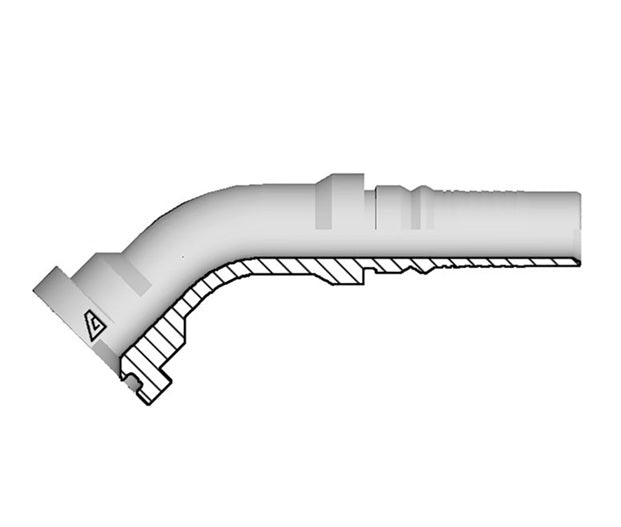

Y-2424-C614 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -24 Code 61 Flange Interlock x -24 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Code 61 Flange Interlock x Hose Barb
SAE J518
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $83.97 |
| 20–59 | $75.93 |
| 60+ | $67.00 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
D Drop |
Max Working Pressure |
Weight | |||
| Dash Size |
in | mm | in | mm | mm | mm | PSI | lbs/each | |
| Y-0808-C614 | -08 | 1/2" | 12.7mm | 1.19" | 30.2mm | 51.0mm | 22.0mm | 5000 PSI | 0.39 lbs |
| Y-1212-C614 | -12 | 3/4" | 19.0mm | 1.50" | 38.1mm | 68.0mm | 25.0mm | 5000 PSI | 0.62 lbs |
| Y-1616-C614 | -16 | 1" | 25.4mm | 1.75" | 44.5mm | 82.5mm | 29.0mm | 5000 PSI | 0.83 lbs |
| Y-2020-C614 | -20 | 1-1/4" | 31.8mm | 2.00" | 50.8mm | 100.9mm | 32.5mm | 4000 PSI | 1.58 lbs |
| Y-2424-C614 | -24 | 1-1/2" | 38.1mm | 2.38" | 60.3mm | 103.7mm | 43.0mm | 3000 PSI | 1.98 lbs |
| Y-3232-C614 | -32 | 2" | 50.8mm | 2.81" | 71.4mm | 138.1mm | 54.0mm | 3000 PSI | 3.82 lbs |
