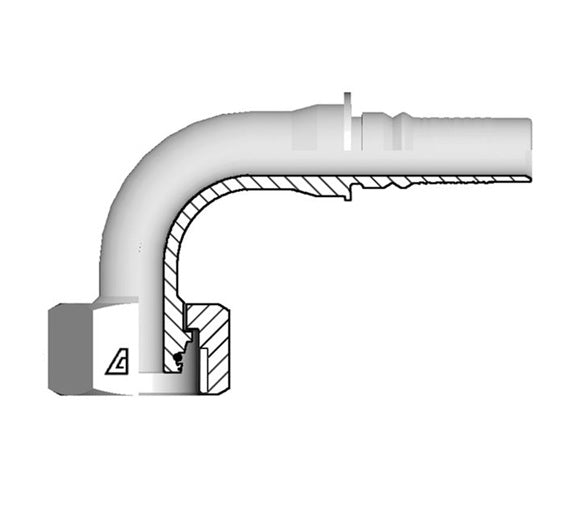

Y-2052-FM9H Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | M52 Female Metric O-Ring Swivel x -20 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Female Metric O-Ring Swivel x Hose Barb
DIN 3865 Heavy
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $75.75 |
| 20–59 | $68.49 |
| 60+ | $60.44 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Material(s):
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | F Thread | Tube OD | C Cut-Off Factor |
D Drop |
Hex Dia. CH1 |
Weight | ||
| Dash Size |
in | mm | (mm) x TP (mm) | mm | mm | mm | mm | lbs/each | |
| Y-1030-FM9H | -10 | 5/8" | 25.9mm | M30x2 | 20mm | 48.0mm | 55.0mm | 36mm | 0.64 lbs |
| Y-1230-FM9H | -12 | 3/4" | 19.0mm | M30x2 | 20mm | 61.0mm | 67.5mm | 36mm | 0.92 lbs |
| Y-1236-FM9H | -12 | 3/4" | 19.0mm | M36x2 | 25mm | 61.7mm | 65.0mm | 46mm | 1.17 lbs |
| Y-1636-FM9H | -16 | 1" | 25.4mm | M36x2 | 25mm | 76.5mm | 82.0mm | 46mm | 1.56 lbs |
| Y-1642-FM9H | -16 | 1" | 25.4mm | M42x2 | 30mm | 86.4mm | 79.0mm | 50mm | 1.62 lbs |
| Y-2052-FM9H | -20 | 1-1/4" | 38.1mm | M52x2 | 38mm | 90.9mm | 101.0mm | 60mm | 2.97 lbs |
