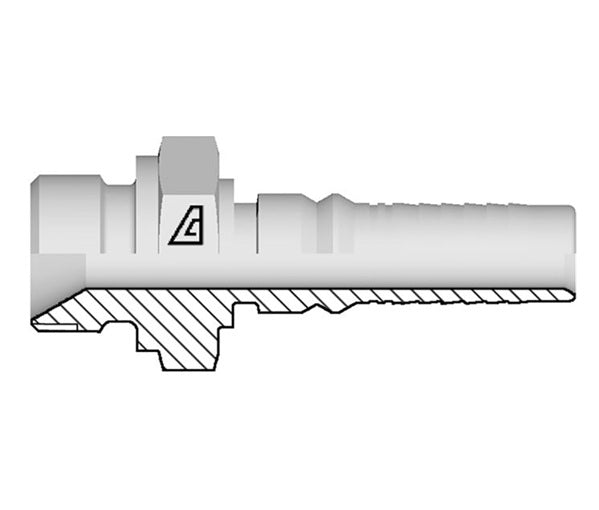

Y-2020-MBPP Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -20 Male BSPP 60° Seat Interlock x -20 Hose ID | Steel

Y-2020-MBPP Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -20 Male BSPP 60° Seat Interlock x -20 Hose ID | Steel

Sale price$46.10

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Male BSPP 60° Seat Interlock x Hose Barb
Buy More, Save More!
Quantity Price Each
10–39 $43.33
40–79 $39.19
80+ $34.58
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

Straight
Part Number Hose ID Size F Thread C Cut-Off Factor Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm lbs/each
Y-1212-MBPP -12 3/4" 19.0mm -12 3/4-14 34.0mm 32mm 0.38 lbs
Y-1616-MBPP -16 1" 25.4mm -16 1-11 40.0mm 41mm 0.70 lbs
Y-2020-MBPP -20 1-1/4" 31.8mm -20 1-1/4-11 45.2mm 50mm 1.15 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
