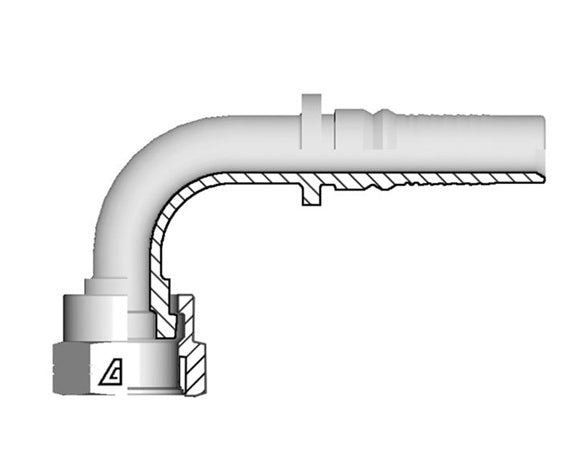

Y-2020-FO9M Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -20 Female ORFS Interlock x -20 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Female ORFS x Hose Barb
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $65.17 |
| 40–79 | $58.93 |
| 80+ | $52.00 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | F Thread | C Cut-Off Factor |
D Drop |
Hex Dia. CH1 |
Weight | |||
| Dash Size | in | mm | Dash Size | Size(in) - TPI | mm | mm | mm | lbs/each | |
| Y-1212-FO9M | -12 | 3/4" | 19.0mm | -12 | 1-3/16-12 | 64.2mm | 58mm | 36mm | 0.84 lbs |
| Y-1616-FO9M | -16 | 1" | 25.4mm | -16 | 1-7/16-12 | 75.2mm | 66mm | 41mm | 1.18 lbs |
| Y-2020-FO9M | -20 | 1-1/4" | 31.8mm | -20 | 1-11/16-12 | 91.7mm | 81mm | 50mm | 1.89 lbs |
| Y-2424-FO9M | -24 | 1-1/2" | 38.1mm | -24 | 2-12 | 99.0mm | 84mm | 60mm | 2.55 lbs |
