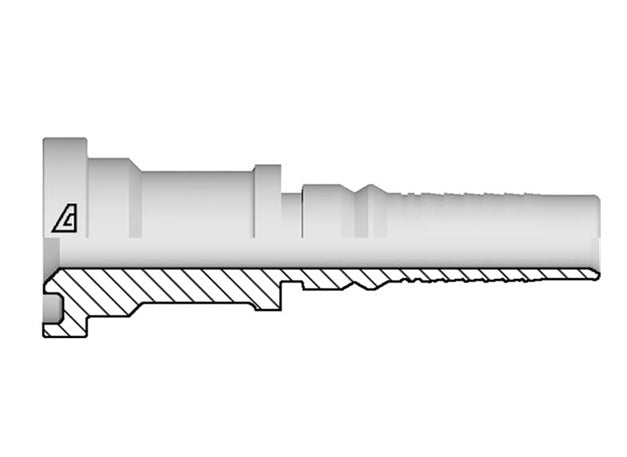

Y-2020-C62S Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -20 Code 62 Flange Interlock x -20 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Code 62 Flange Interlock x Hose Barb
SAE J518
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $45.51 |
| 40–79 | $41.16 |
| 80+ | $36.32 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
Max Working Pressure |
Weight | ||||
| Dash Size |
in | mm | in | mm | mm | PSI | lbs/each | ||
| Y-1212-C62S | -12 | 3/4" | 19.0mm | 1.63" | 41.3mm | 50.0mm | 6000 PSI | 0.59 lbs | |
| Y-1616-C62S | -16 | 1" | 25.4mm | 1.88" | 47.6mm | 54.0mm | 6000 PSI | 0.91 lbs | |
| Y-2020-C62S | -20 | 1-1/4" | 31.8mm | 2.13" | 54.0mm | 62.2mm | 6000 PSI | 1.33 lbs | |
| Y-2424-C62S | -24 | 1-1/2" | 38.1mm | 2.50" | 63.5mm | 68.5mm | 6000 PSI | 2.01 lbs | |
| Y-3232-C62S | -32 | 2" | 50.8mm | 3.13" | 79.4mm | 87.0mm | 6000 PSI | 3.60 lbs | |
