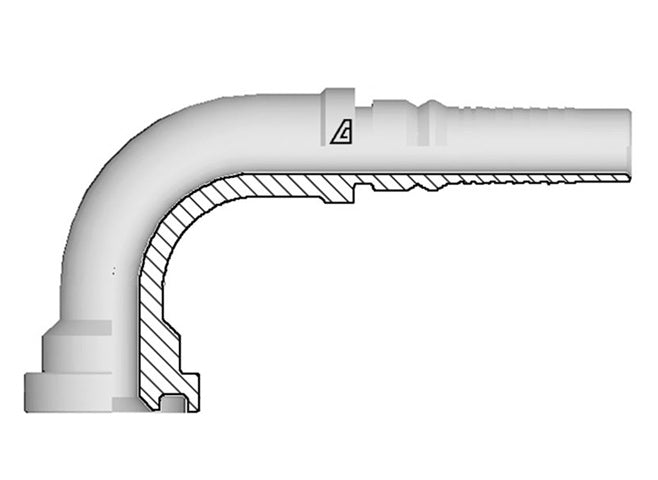

Y-2020-C629 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -20 Code 62 Flange Interlock x -20 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Code 62 Flange Interlock x Hose Barb
SAE J518
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $72.19 |
| 20–59 | $65.28 |
| 60+ | $57.60 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
D Drop |
Max Working Pressure |
Weight | |||
| Dash Size |
in | mm | in | mm | mm | mm | PSI | lbs/each | |
| Y-1212-C629 | -12 | 3/4" | 19.0mm | 1.63" | 41.3mm | 61.2mm | 64.0mm | 6000 PSI | 0.80 lbs |
| Y-1616-C629 | -16 | 1" | 25.4mm | 1.88" | 47.6mm | 70.4mm | 74.0mm | 6000 PSI | 1.54 lbs |
| Y-2020-C629 | -20 | 1-1/4" | 31.8mm | 2.13" | 54.0mm | 88.2mm | 91.0mm | 6000 PSI | 2.47 lbs |
| Y-2424-C629 | -24 | 1-1/2" | 38.1mm | 2.50" | 63.5mm | 106.3mm | 109.0mm | 6000 PSI | 2.69 lbs |
| Y-3232-C629 | -32 | 2" | 50.8mm | 3.13" | 79.4mm | 149.0mm | 138.5mm | 6000 PSI | 6.17 lbs |
