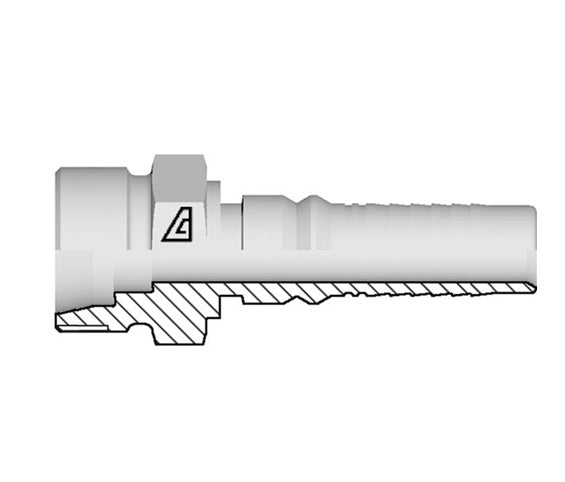

Y-1642-MMSH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | M42 Male Metric 24° Seat Interlock x -16 Hose ID | Steel

Y-1642-MMSH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | M42 Male Metric 24° Seat Interlock x -16 Hose ID | Steel

Sale price$32.48

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Male Metric 24° Seat Interlock x Hose Barb

DIN 3861 Heavy
Buy More, Save More!
Quantity Price Each
10–39 $30.53
40–79 $27.61
80+ $24.36
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

Straight
Part Number Hose ID Size F Thread Tube OD C
Cut-Off
Factor		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm (mm) x TP (mm) mm mm mm lbs/each
Y-1236-MMSH -12 3/4" 19.0mm M36x2 25mm 35.0mm 36mm 0.49 lbs
Y-1642-MMSH -16 1" 25.4mm M42x2 30mm 40.0mm 46mm 0.85 lbs
Y-2052-MMSH -20 1-1/4" 31.8mm M52x2 38mm 45.2mm 55mm 1.37 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
