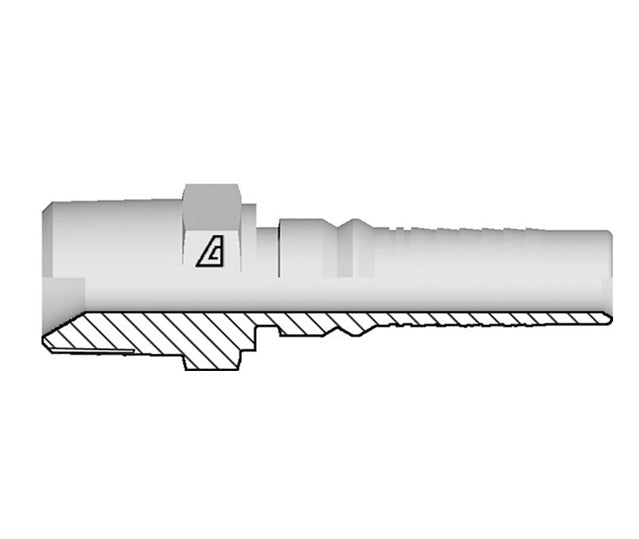

Y-1212-MBPT Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Male BSPT / JIS Interlock x -12 Hose ID | Steel

Y-1212-MBPT Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Male BSPT / JIS Interlock x -12 Hose ID | Steel

Sale price$25.22
Buy more, save moreDiscounts applied in cart/checkout.
Part Number Hose ID Size F Thread C Cut-Off Factor Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm lbs/each
Y-1212-MBPT -12 3/4" 19.0mm -12 3/4-14 32.0mm 27mm 0.34 lbs
Y-1616-MBPT -16 1" 25.4mm -16 1-11 41.0mm 36mm 0.71 lbs
Y-2020-MBPT -20 1-1/4" 31.8mm -20 1 1/4-11 46.2mm 46mm 1.28 lbs

Additional Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
