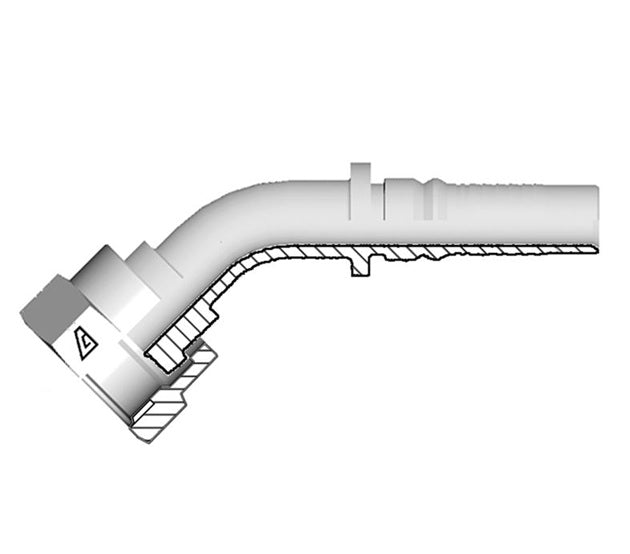

Y-1212-FO45 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -12 Female ORFS Interlock x -12 Hose ID | Steel

Y-1212-FO45 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -12 Female ORFS Interlock x -12 Hose ID | Steel

Sale price$26.23

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Female ORFS x Hose Barb
Buy More, Save More!
Quantity Price Each
10–39 $24.66
40–79 $22.30
80+ $19.67
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • Y Series
Shape:

45 Degree
Part Number Hose ID Size F Thread C Cut-Off
Factor		 D
Drop		 Hex Dia.
CH1		 Weight
Dash Size in mm Dash Size Size(in) - TPI mm mm mm lbs/each
Y-1212-FO45 -12 3/4" 19.0mm -12 1-3/16-12 78.0mm 26.0mm 36mm 0.74 lbs
Y-1616-FO45 -16 1" 25.4mm -16 1-7/16-12 114.0mm 28.0mm 41mm 1.18 lbs
Y-2020-FO45 -20 1-1/4" 31.8mm -20 1-11/16-12 100.7mm 33.0mm 50mm 1.64 lbs
Y-2424-FO45 -24 1-1/2" 38.1mm -24 2-12 107.0mm 36.5mm 60mm 2.27 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
