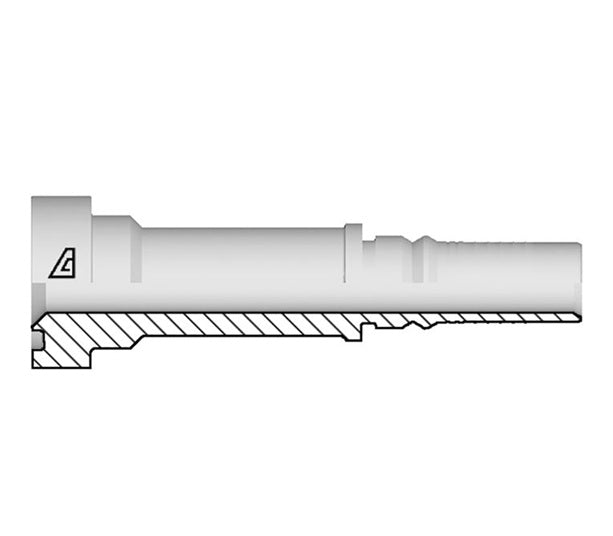

Y-1212-CFLS Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -12 CAT Flange Interlock x -12 Hose ID | 6000 PSI | Steel

Y-1212-CFLS Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -12 CAT Flange Interlock x -12 Hose ID | 6000 PSI | Steel

Sale price$48.19

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | CAT Flange Interlock x Hose Barb

6000 PSI
Buy More, Save More!
Quantity Price Each
10–39 $45.30
40–79 $40.96
80+ $36.14
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

Straight
Part Number Hose ID Size Q Flange C Cut-Off
Factor		 T Weight
Dash
Size		 in mm in mm mm mm lbs/each
Y-1212-CFLS -12 3/4" 19.0mm 1.63" 41.3mm 82.0mm 14.3mm 0.88 lbs
Y-1616-CFLS -16 1" 25.4mm 1.88" 47.6mm 90.0mm 14.3mm 1.31 lbs
Y-2020-CFLS -20 1-1/4" 31.8mm 2.13" 54.0mm 86.2mm 14.3mm 1.67 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
