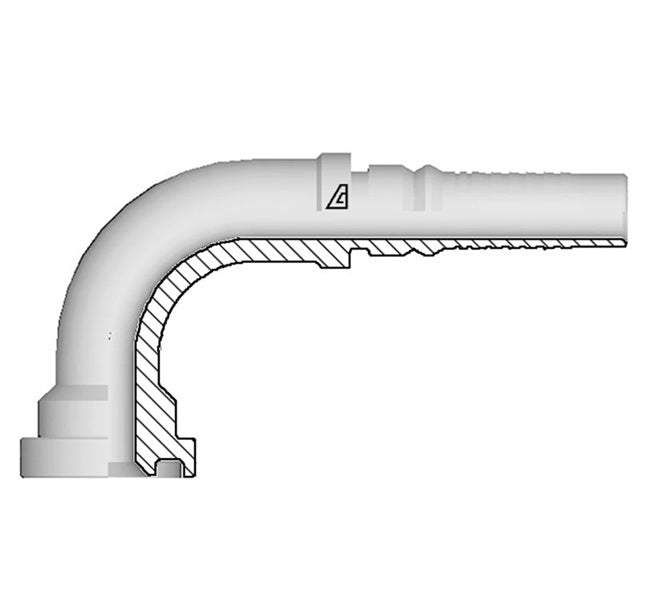

Y-1212-C619 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -12 Code 61 Flange Interlock x -12 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Code 61 Flange Interlock x Hose Barb
SAE J518
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $42.16 |
| 40–79 | $38.12 |
| 80+ | $33.64 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
D Drop |
Max Working Pressure |
Weight | |||
| Dash Size |
in | mm | in | mm | mm | mm | PSI | lbs/each | |
| Y-1212-C619 | -12 | 3/4" | 19.0mm | 1.50" | 38.1mm | 58.0mm | 55mm | 5000 PSI | 0.74 lbs |
| Y-1616-C619 | -16 | 1" | 25.4mm | 1.75" | 44.5mm | 72.2mm | 64mm | 5000 PSI | 1.06 lbs |
| Y-2020-C619 | -20 | 1-1/4" | 31.8mm | 2.00" | 50.8mm | 86.2mm | 81mm | 4000 PSI | 1.61 lbs |
| Y-2424-C619 | -24 | 1-1/2" | 38.1mm | 2.38" | 60.3mm | 96.0mm | 93mm | 3000 PSI | 2.35 lbs |
| Y-3232-C619 | -32 | 2" | 50.8mm | 2.81" | 71.4mm | 134.4mm | 130.0mm | 3000 PSI | 4.72 lbs |
