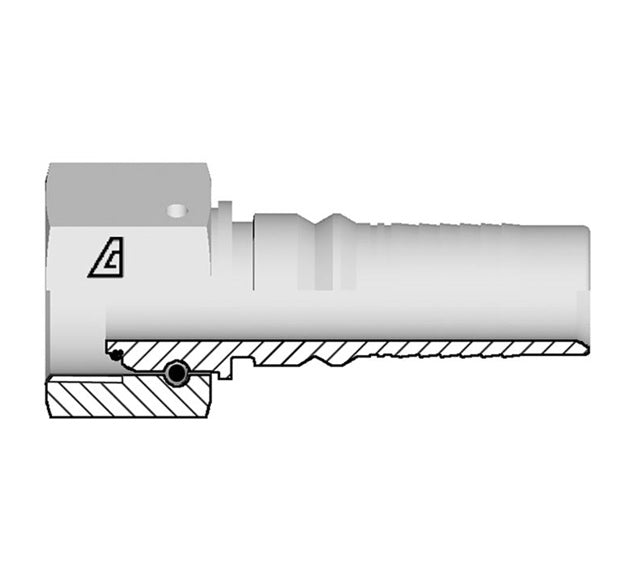

Y-0808-FBPO Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Female BSP / JIS Swivel 60° Cone Interlock x -08 Hose ID | Steel

Y-0808-FBPO Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Female BSP / JIS Swivel 60° Cone Interlock x -08 Hose ID | Steel

Sale price$11.56

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Female BSP / JIS Swivel 60° Cone Interlock x Hose Barb
Buy More, Save More!
Quantity Price Each
10–39 $10.87
40–79 $9.83
80+ $8.67
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

Straight
Part Number Hose ID Size F Thread C Cut-Off Factor Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm lbs/each
Y-0808-FBPO -08 1/2" 12.7mm -08 1/2-14 22.5mm 27mm 0.32 lbs
Y-1212-FBPO -12 3/4" 19.0mm -12 3/4-14 22.5mm 32mm 0.40 lbs
Y-1616-FBPO -16 1" 25.4mm -16 1-11 25.5mm 38mm 0.64 lbs
Y-2020-FBPO -20 1-1/4" 31.8mm -20 1 1/4-11 30.2mm 50mm 1.18 lbs
Y-2424-FBPO -24 1-1/2" 38.1mm -24 1 1/2-11 33.5mm 55mm 1.64 lbs
Y-3232-FBPO -32 2" 50.8mm -32 2-11 33.0mm 70mm 2.71 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
