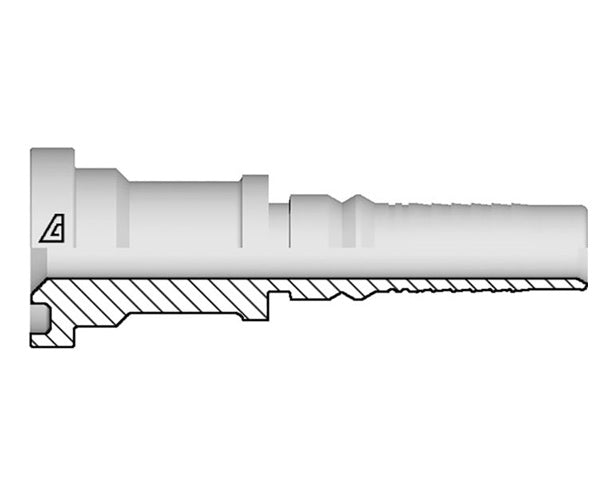

Y-0808-C61S Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -08 Code 61 Flange Interlock x -08 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Code 61 Flange Interlock x Hose Barb
SAE J518
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $21.10 |
| 40–79 | $19.08 |
| 80+ | $16.84 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
Max Working Pressure |
Weight | |||
| Dash Size |
in | mm | in | mm | mm | PSI | lbs/each | |
| Y-0808-C61S | -08 | 1/2" | 12.7mm | 1.19" | 30.2mm | 39.0mm | 5000 PSI | 0.32 lbs |
| Y-1212-C61S | -12 | 3/4" | 19.0mm | 1.50" | 38.1mm | 40.0mm | 5000 PSI | 0.50 lbs |
| Y-1616-C61S | -16 | 1" | 25.4mm | 1.75" | 44.5mm | 49.0mm | 5000 PSI | 0.78 lbs |
| Y-2020-C61S | -20 | 1-1/4" | 31.8mm | 2.00" | 50.8mm | 52.7mm | 4000 PSI | 1.09 lbs |
| Y-2424-C61S | -24 | 1-1/2" | 38.1mm | 2.38" | 60.3mm | 56.0mm | 3000 PSI | 1.42 lbs |
| Y-3232-C61S | -32 | 2" | 50.8mm | 2.81" | 71.4mm | 69.0mm | 3000 PSI | 2.62 lbs |
