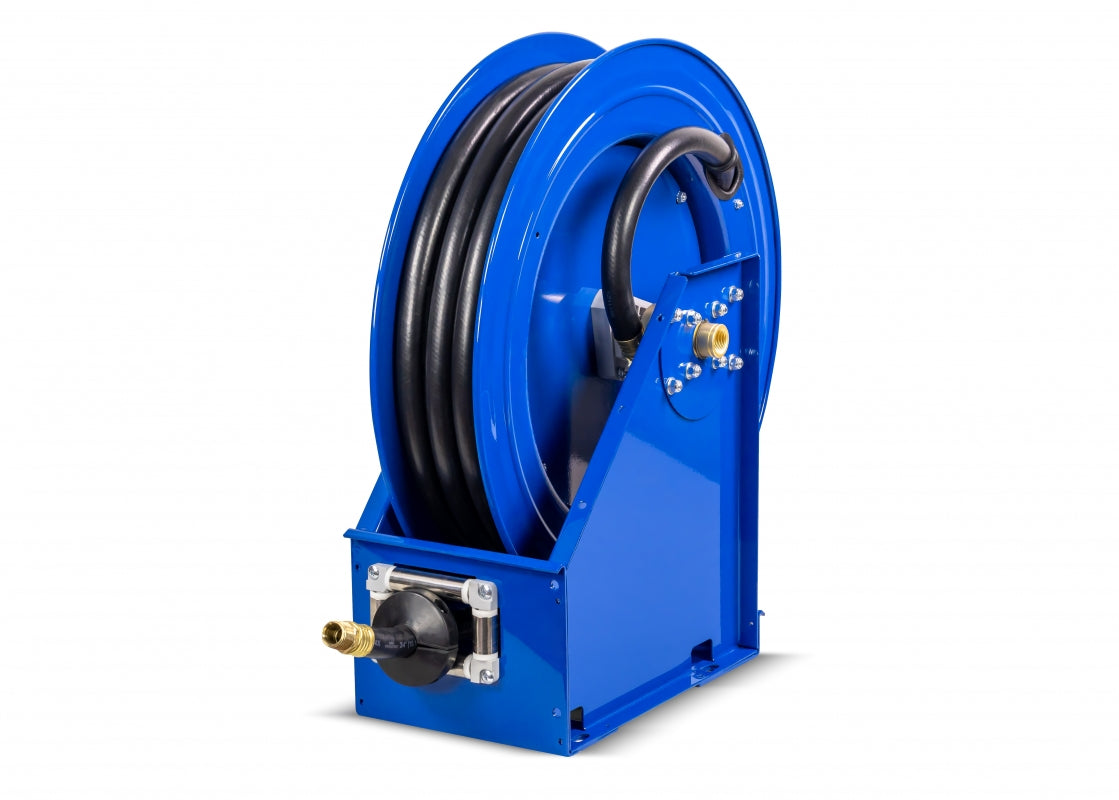

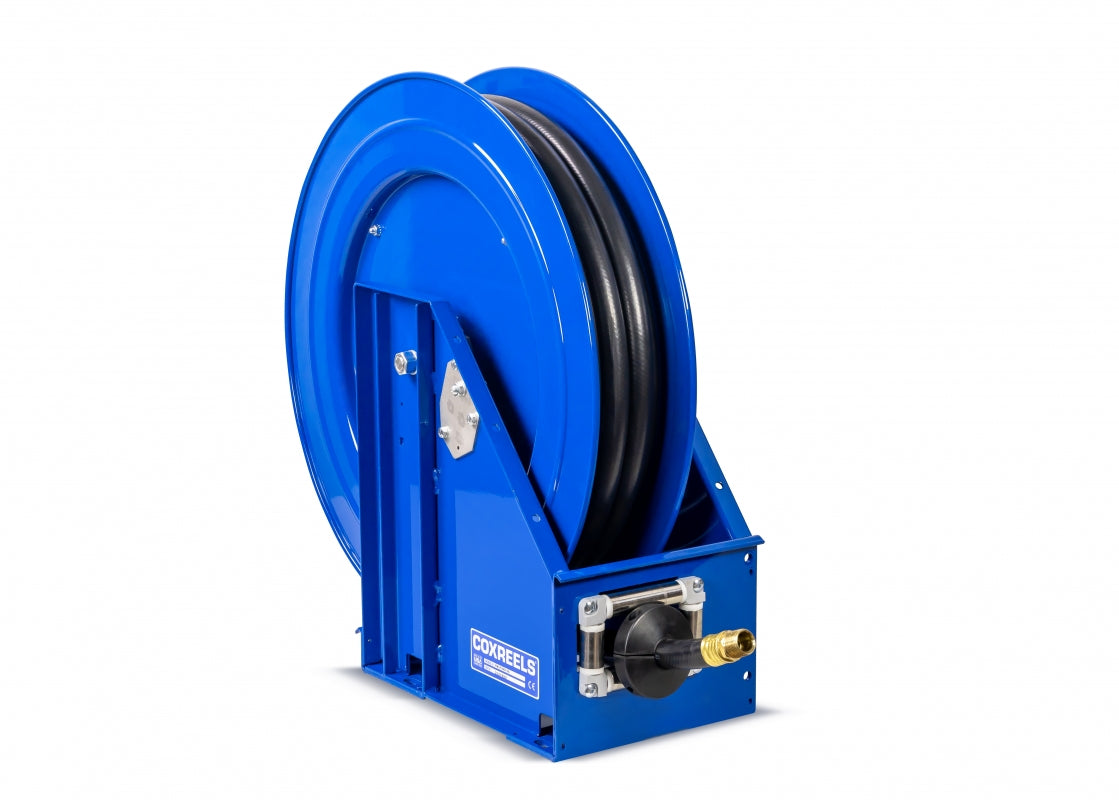

XTM-LP-550-DF-BBX by Coxreels | XTM DEF Series | 300 PSI Spring Driven Hose Reel for DEF | 3/4" Hose ID, 3/4" FNPT Inlet x 3/4" MNPT Hose End | Steel | 50ft EPDM Hose Included
Buy more, save moreDiscounts applied in cart/checkout.
Spring driven hose reel
Coxreels XTM DEF Series Spring Driven Hose Reels
Steel box-frame spring driven hose reels for def dispensing, rated to 300 PSI.
1
What is this product used for?
- DEF Dispensing
2
What are the key specifications?
Construction
Steel, box-frame
Swivel
Stainless Steel 90° full-flow with Viton seals
Inlet
3/4" FNPT
Max Temperature
250°F
Bearings
1" Permanently Lubricated Precision Bearings
Finish
CPC™ powder coat
Mounting
Bottom, Floor & Wall mount
Reel W × H × L
10.125 × 23.125 × 24 in
3
What are the main product features?
- Swivel — Non-corrosive stainless steel 90˚ full-flow NPT swivel for Diesel Exhaust Fluid (DEF) dispensing applications.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Box Frame Construction — Fully welded box frame construction with redundant flanges.Exclusive Super Hub™ triple axle support system.
- Stainless Steel Pawl — Accessible stainless steel pawl and pawl spring on ratchet locking mechanism.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI |
|---|---|---|---|
| XTM-LP-550-DF-BBX | 3/4" | 50 ft | 300 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
Manufactured by Coxreels.
How is this product sold?
Each.
