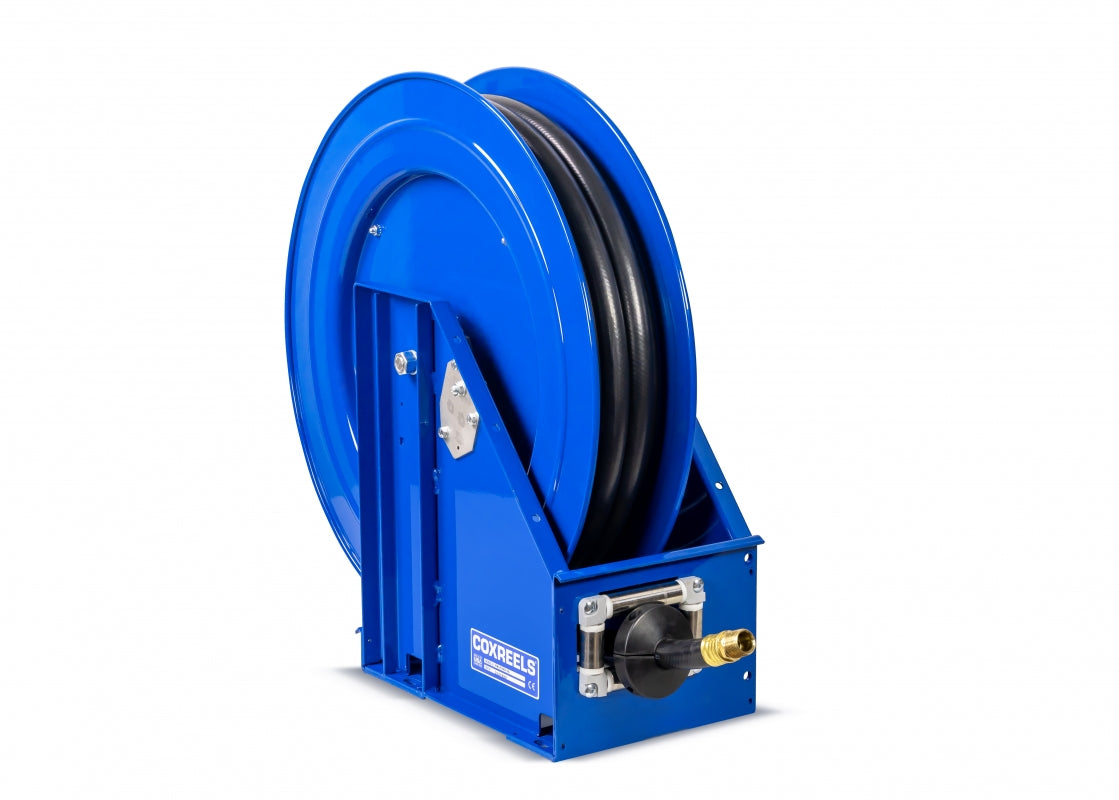

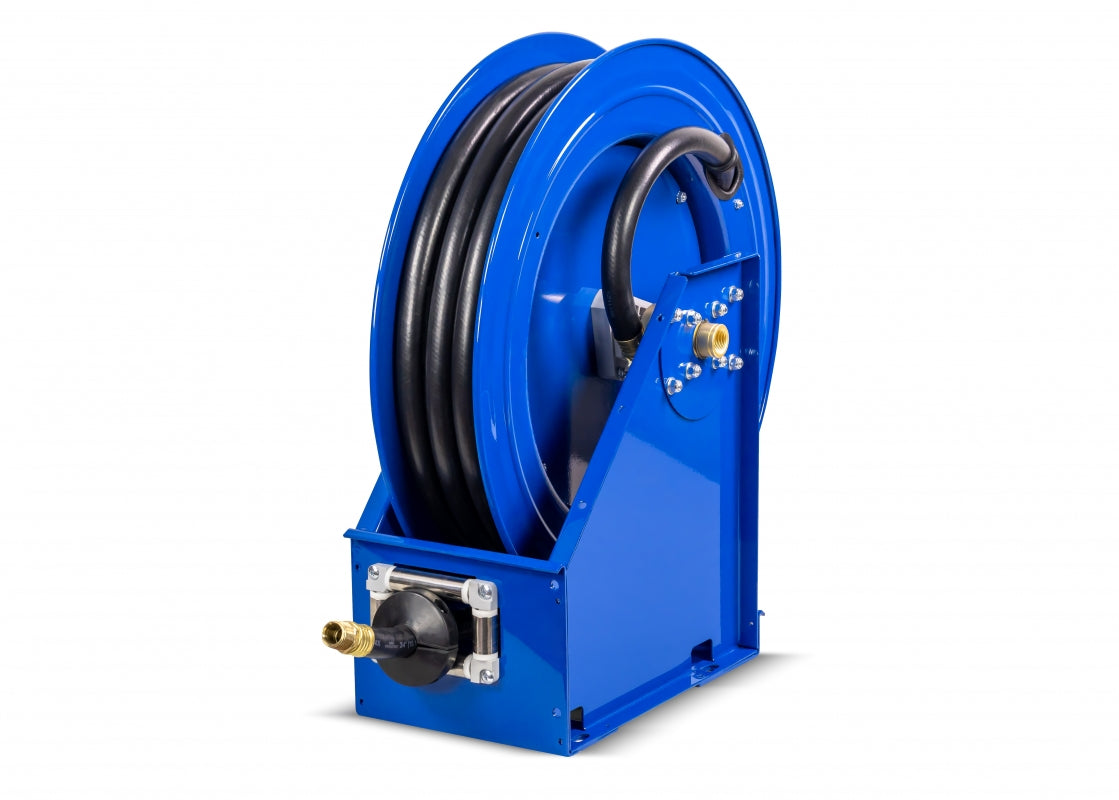

XTM-HP-350 by Coxreels | XTM Series | 4,000 PSI Spring Driven Hose Reel | 3/8" Hose ID, 3/8" FNPT Inlet x 3/8" MNPT Hose End | Steel | 50ft Rubber Hose Included
Buy more, save moreDiscounts applied in cart/checkout.
Spring driven hose reel
Coxreels XTM Series Spring Driven Hose Reels
Steel box-frame spring driven hose reels for air, water, washdown, chemical fluid transfer and oil and lubrication, rated to 4,000 PSI.
1
What is this product used for?
- 300 PSI models — Air, water, washdown, chemical fluid transfer.
- 1,250–3,000 PSI models — Air, water, oil & lubrication, washdown.
- 4,000 PSI models — Air, water, oil & lubrication, grease & hydraulics, pressure washing.
2
What are the key specifications?
Construction & Finish
Steel, box-frame
CPC™ powder coat
Swivel
Nitrile seals
Inlet
Female NPT, same size as the hose I.D.
Max Temperature
150°F / 250°F depending on hose
Bearings
1" Permanently Lubricated Precision Bearings
Mounting
Bottom, Floor & Wall mount
3
What are the main product features?
- Swivel — 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Box Frame Construction — Fully welded box frame construction with redundant flanges.Exclusive Super Hub™ triple axle support system.
- Stainless Steel Pawl — Accessible stainless steel pawl and pawl spring on ratchet locking mechanism.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Reel W × H × L (in) |
|---|---|---|---|---|
| Low Pressure — PVC hose included | ||||
| XTM-LP-375 | 3/8" | 75 ft | 300 | 10.125 × 23.125 × 24.125 |
| XTM-LP-475 | 1/2" | 75 ft | 300 | 10.125 × 23.125 × 24.125 |
| XTM-LP-550 | 3/4" | 50 ft | 300 | 10.125 × 23.125 × 24.125 |
| XTM-LP-575 | 3/4" | 75 ft | 300 | 12.75 × 23.125 × 24.125 |
| XTM-LP-650 | 1" | 50 ft | 300 | 12.75 × 23.125 × 24.125 |
| XTM-LP-3100 | 3/8" | 100 ft | 300 | 10.125 × 23.125 × 24.125 |
| XTM-LP-4100 | 1/2" | 100 ft | 300 | 10.125 × 23.125 × 24.125 |
| Low Pressure — hose not included | ||||
| XTM-LPL-650 | 1" | 50 ft | 300 | 12.75 × 23.125 × 24.125 |
| Medium Pressure — rubber hose included | ||||
| XTM-MP-350 | 3/8" | 50 ft | 3,000 | 10.125 × 23.125 × 24.125 |
| XTM-MP-375 | 3/8" | 75 ft | 3,000 | 10.125 × 23.125 × 24.125 |
| XTM-MP-450 | 1/2" | 50 ft | 2,500 | 10.125 × 23.125 × 24.125 |
| XTM-MP-475 | 1/2" | 75 ft | 2,500 | 10.125 × 23.125 × 24.125 |
| XTM-MP-550 | 3/4" | 50 ft | 1,500 | 10.125 × 23.125 × 24.125 |
| XTM-MP-575 | 3/4" | 75 ft | 1,500 | 12.75 × 23.125 × 24.125 |
| XTM-MP-650 | 1" | 50 ft | 1,250 | 12.75 × 23.125 × 24.125 |
| XTM-MP-3100 | 3/8" | 100 ft | 3,000 | 10.125 × 23.125 × 24.125 |
| XTM-MP-4100 | 1/2" | 100 ft | 2,500 | 10.125 × 23.125 × 24.125 |
| Medium Pressure — hose not included | ||||
| XTM-MPL-550 | 3/4" | 50 ft | 1,500 | 10.125 × 23.125 × 24.125 |
| XTM-MPL-575 | 3/4" | 75 ft | 1,500 | 12.75 × 23.125 × 24.125 |
| XTM-MPL-650 | 1" | 50 ft | 1,500 | 12.75 × 23.125 × 24.125 |
| XTM-MPL-3100 | 3/8" | 100 ft | 3,000 | 10.125 × 23.125 × 24.125 |
| XTM-MPL-4100 | 1/2" | 100 ft | 2,500 | 10.125 × 23.125 × 24.125 |
| High Pressure — rubber hose included | ||||
| XTM-HP-350 | 3/8" | 50 ft | 4,000 | 10.125 × 23.125 × 24.125 |
| XTM-HP-375 | 3/8" | 75 ft | 4,000 | 10.125 × 23.125 × 24.125 |
| High Pressure — hose not included | ||||
| XTM-HPL-375 | 3/8" | 75 ft | 4,000 | 10.125 × 23.125 × 24.125 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| Hose suffix | |
| -BP | Blue PVC Hose |
| -YP | Yellow PVC Hose |
| -HV | Hi-Vis PVC+Rubber Hybrid Hose |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BWX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| Other | |
| -BXB | Bend Restrictor |
| -BXC | Constant Tension |
| -BXK / -BXL | Air Tool Kit |
| -BXN | Non-Sparking Lock Mechanism |
| -BXR | Reverse Spring |
Manufactured by Coxreels.
How is this product sold?
Each.
