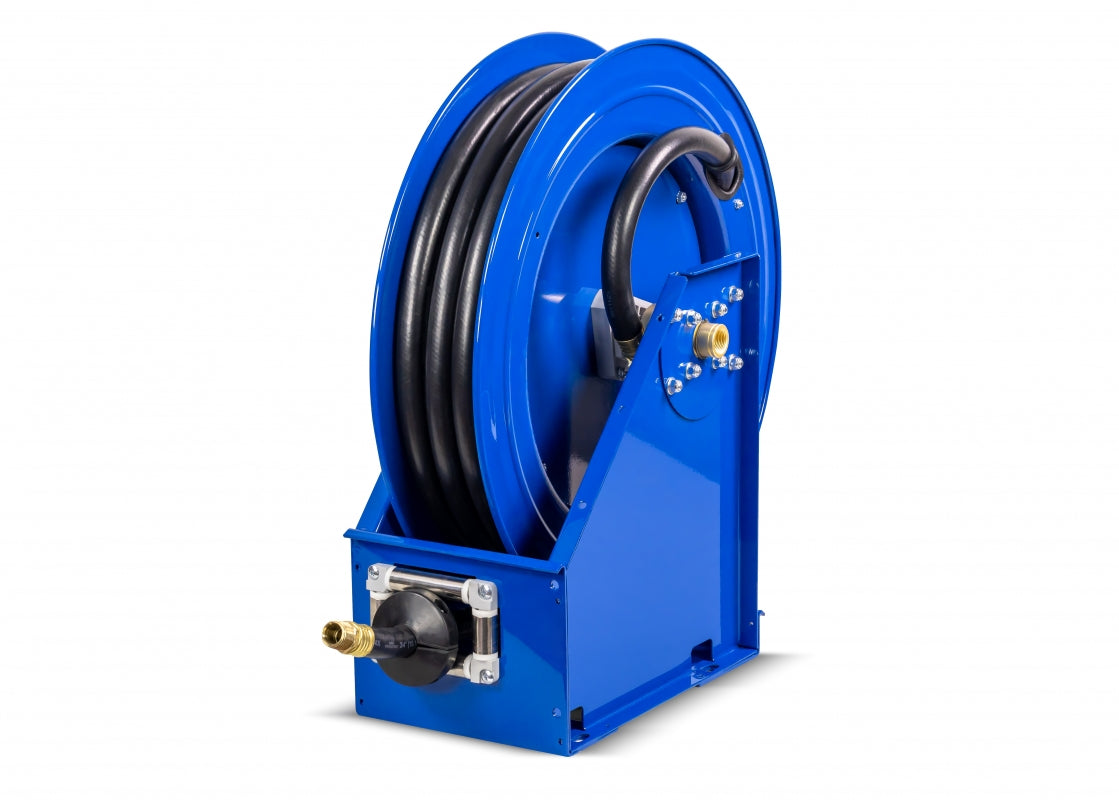

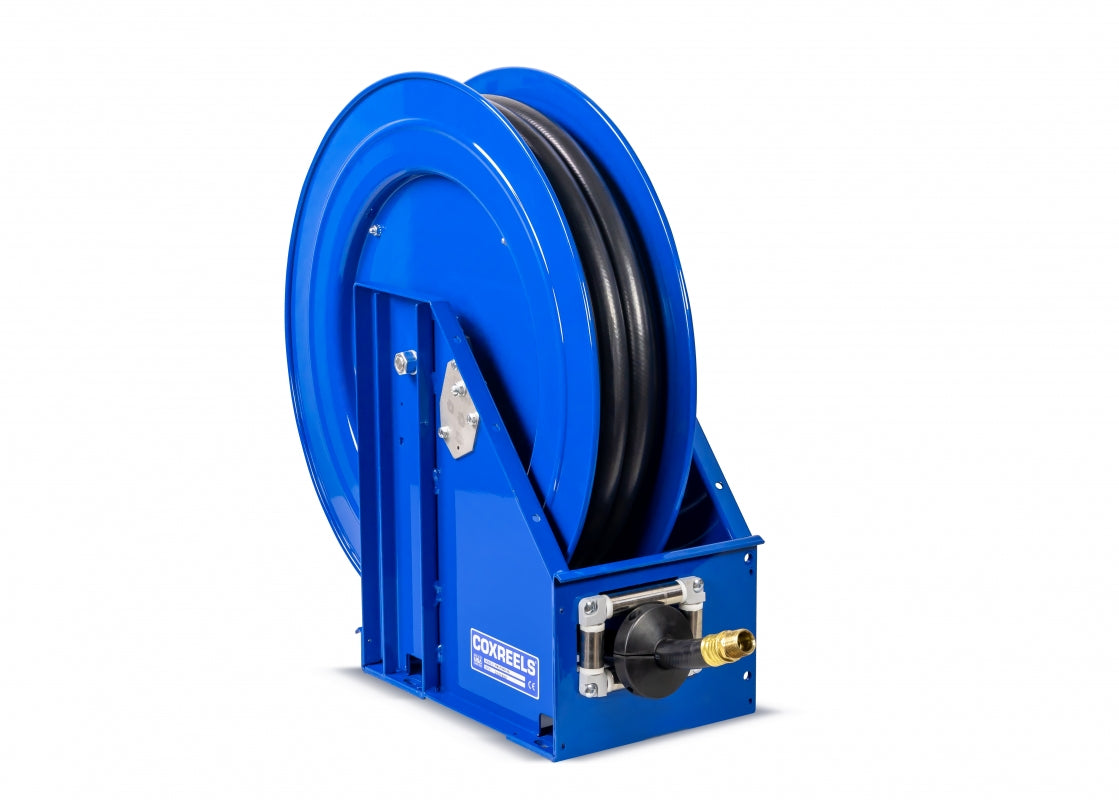

XTM-DMP-450 by Coxreels | XTM Dual Hydraulic Series | 3,000 PSI Dual Hose Spring Driven Hose Reel for Hydraulic Oil | 1/2" Hose ID, 1/2" FNPT Inlet x 1/2" MNPT Hose End | Steel | 50ft Synthetic Rubber Hose Included
Coxreels XTM Dual Hydraulic Series Spring Driven Hose Reels
Steel box-frame spring driven hose reels for dual hydraulics, rated to 3,000 PSI.
1
What is this product used for?
- Dual Hydraulics
2
What are the key specifications?
Steel, box-frame
Melanized 90° full-flow with Teflon seals
1/2" FNPT
212°F
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Bottom, Floor & Wall mount
Ø0.5" mounting holes
13.625 × 26.125 × 24 in
3
What are the main product features?
- Swivel — External fluid path with dual port melanized 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Box Frame Construction — Fully welded box frame construction with redundant flanges.Exclusive Super Hub™ triple axle support system.
- Stainless Steel Pawl — Accessible stainless steel pawl and pawl spring on ratchet locking mechanism.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Hose |
|---|---|---|---|---|
| XTM-DMP-450 | 1/2" | 50 ft | 3,000 | Synthetic Rubber |
| XTM-DMPL-450 | 1/2" | 50 ft | 3,000 | Less hose |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
How is this product sold?
Each.
