XPB1510 Cogged Metric Wrapped V- Belt - XPB - 1532mm O. C. (Old Part #: SPBX1510)
Bestorq

XPB1510 by Bestorq | Cogged Metric Wrapped V-Belt | XPB Section | 1532mm O.C. | Replaces: SPBX1510

Sale price$31.26

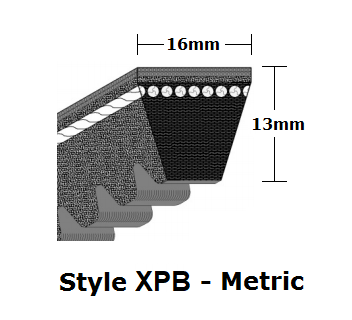

Cogged Metric V-Belts - XPB (SPBX) Style

Product Data:

Series:
  • Cogged Metric Wrapped V-Belt
Overview:
  • Single, raw edge notched V-belts give premium belt performance. The belts are constructed of highly engineered, high performance components. The components are made using the latest in belt technology available on a global basis. The "X" in the part number refers to higher load ratings than standard wrapped belts.
  • All belts of a size are manufactured to run as a matched set, i.e. any 5VX900 belt will run as a matched set with any other 5VX900 belt.
Features:
  • The lower, compression section of the belt is made of highly fiber reinforced, oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, cool running, flexibility, and has been proven through thousands of hours of testing. The rubber directly surrounding the tensile member cables is also fiber reinforced and compounded for great adhesion to the tensile member cords. The top fabric is a specially woven, synthetic-natural fiber blend. The notches are engineered to allow the belts to have superior flex characteristics on smaller and larger diameter pulleys.
  • The helically wound tensile cords are specially engineered, twisted, heat and chemically set, polyester material. Testing has proven that the tensile decay properties of the Premier Cord are truly World Class.
Specifications:
  • The belts exceed USA RMA published ratings levels. They are designed to perform at the identical or higher level than all other major USA Manufacturer's belts of the same type. All AX, BX, CX, 3VX and 5VX belts are manufactured to meet RMA standards for length and dimensions. All belts of a given size are manufactured to run interchangeably in a matched set. (SPZX, SPAX, SPBX, and SPCX belts are manufactured to fit ISO standard dimension multi-groove pulleys.)

Part Number Old Part Number Top Width
(mm)		 Thickness
(mm) 		Angle Outside Circumference (O.C.)
(mm)
XPB1250 SPBX1250 16mm 13mm 40 1272mm
XPB1260 SPBX1260 16mm 13mm 40 1282mm
SPBX1270 - 16mm 13mm 40 1292mm
SPBX1285 - 16mm 13mm 40 1307mm
XPB1320 SPBX1320 16mm 13mm 40 1342mm
XPB1340 SPBX1340 16mm 13mm 40 1362mm
XPB1360 SPBX1360 16mm 13mm 40 1382mm
XPB1400 SPBX1400 16mm 13mm 40 1422mm
XPB1410 SPBX1410 16mm 13mm 40 1432mm
XPB1450 SPBX1450 16mm 13mm 40 1472mm
XPB1500 SPBX1500 16mm 13mm 40 1522mm
XPB1510 SPBX1510 16mm 13mm 40 1532mm
XPB1590 SPBX1590 16mm 13mm 40 1612mm
XPB1600 SPBX1600 16mm 13mm 40 1622mm
XPB1620 SPBX1620 16mm 13mm 40 1642mm
XPB1627 SPBX1627 16mm 13mm 40 1649mm
XPB1690 SPBX1690 16mm 13mm 40 1712mm
XPB1700 SPBX1700 16mm 13mm 40 1722mm
XPB1750 SPBX1750 16mm 13mm 40 1772mm
XPB1800 SPBX1800 16mm 13mm 40 1822mm
XPB1900 SPBX1900 16mm 13mm 40 1922mm
XPB2000 SPBX2000 16mm 13mm 40 2022mm
XPB2020 SPBX2020 16mm 13mm 40 2042mm
XPB2060 SPBX2060 16mm 13mm 40 2082mm
XPB2098 SPBX2098 16mm 13mm 40 2120mm
XPB2120 SPBX2120 16mm 13mm 40 2142mm
XPB2150 SPBX2150 16mm 13mm 40 2172mm
XPB2180 SPBX2180 16mm 13mm 40 2202mm
XPB2240 SPBX2240 16mm 13mm 40 2262mm
XPB2280 SPBX2280 16mm 13mm 40 2302mm
XPB2300 SPBX2300 16mm 13mm 40 2322mm
XPB2360 SPBX2360 16mm 13mm 40 2382mm
XPB2391 SPBX2391 16mm 13mm 40 2413mm
XPB2410 SPBX2410 16mm 13mm 40 2432mm
XPB2650 SPBX2650 16mm 13mm 40 2672mm
XPB3200 SPBX3200 16mm 13mm 40 3222mm
XPB3350 SPBX3350 16mm 13mm 40 3372mm
XPB3550 SPBX3550 16mm 13mm 40 3572mm
XPB3750 SPBX3750 16mm 13mm 40 3772mm
XPB4250 SPBX4250 16mm 13mm 40 4272mm
XPB4500 SPBX4500 16mm 13mm 40 4522mm
