XPA782 Cogged Metric Wrapped V- Belt - XPA - 800mm O. C. (Old Part #: SPAX782)
Bestorq

XPA782 by Bestorq | Cogged Metric Wrapped V-Belt | XPA Section | 800mm O.C. | Replaces: SPAX782

Sale price$11.13
Cogged Metric V-Belts - XPA (SPAX) Style

Product Data:

Series:
  • Cogged Metric Wrapped V-Belt

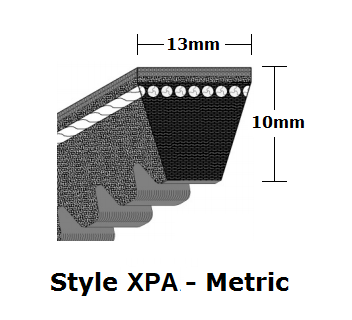

Belt Cross Section:

XPA

Belt Width:

13mm
Overview:
  • Single, raw edge notched V-belts give premium belt performance. The belts are constructed of highly engineered, high performance components. The components are made using the latest in belt technology available on a global basis. The "X" in the part number refers to higher load ratings than standard wrapped belts.
  • All belts of a size are manufactured to run as a matched set, i.e. any 5VX900 belt will run as a matched set with any other 5VX900 belt.
Features:
  • The lower, compression section of the belt is made of highly fiber reinforced, oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, cool running, flexibility, and has been proven through thousands of hours of testing. The rubber directly surrounding the tensile member cables is also fiber reinforced and compounded for great adhesion to the tensile member cords. The top fabric is a specially woven, synthetic-natural fiber blend. The notches are engineered to allow the belts to have superior flex characteristics on smaller and larger diameter pulleys.
  • The helically wound tensile cords are specially engineered, twisted, heat and chemically set, polyester material. Testing has proven that the tensile decay properties of the Premier Cord are truly World Class.
Specifications:
  • The belts exceed USA RMA published ratings levels. They are designed to perform at the identical or higher level than all other major USA Manufacturer's belts of the same type. All AX, BX, CX, 3VX and 5VX belts are manufactured to meet RMA standards for length and dimensions. All belts of a given size are manufactured to run interchangeably in a matched set. (SPZX, SPAX, SPBX, and SPCX belts are manufactured to fit ISO standard dimension multi-groove pulleys.)

Part Number Old Part Number Top Width
(mm)		 Thickness
(mm)		 Angle Outside Circumference (O.C.)
(mm)
XPA630 SPAX630 13mm 10mm 40 648mm
XPA670 SPAX670 13mm 10mm 40 688mm
XPA730 SPAX730 13mm 10mm 40 748mm
XPA732 SPAX732 13mm 10mm 40 750mm
XPA750 SPAX750 13mm 10mm 40 768mm
XPA760 SPAX760 13mm 10mm 40 778mm
XPA762 SPAX762 13mm 10mm 40 780mm
XPA772 SPAX772 13mm 10mm 40 790mm
XPA782 SPAX782 13mm 10mm 40 800mm
XPA800 SPAX800 13mm 10mm 40 818mm
XPA832 SPAX832 13mm 10mm 40 850mm
XPA850 SPAX850 13mm 10mm 40 868mm
XPA900 SPAX900 13mm 10mm 40 918mm
XPA910 SPAX910 13mm 10mm 40 928mm
XPA922 SPAX922 13mm 10mm 40 940mm
XPA932 SPAX932 13mm 10mm 40 950mm
XPA950 SPAX950 13mm 10mm 40 968mm
XPA967 SPAX967 13mm 10mm 40 985mm
XPA982 SPAX982 13mm 10mm 40 1000mm
XPA1000 SPAX1000 13mm 10mm 40 1018mm
XPA1032 SPAX1032 13mm 10mm 40 1050mm
XPA1060 SPAX1060 13mm 10mm 40 2078mm
XPA1082 SPAX1082 13mm 10mm 40 1100mm
XPA1107 SPAX1107 13mm 10mm 40 1125mm
XPA1120 SPAX1120 13mm 10mm 40 1138mm
XPA1132 SPAX1132 13mm 10mm 40 1150mm
XPA1150 SPAX1150 13mm 10mm 40 1168mm
XPA1157 SPAX1157 13mm 10mm 40 1175mm
XPA1180 SPAX1180 13mm 10mm 40 1198mm
XPA1207 SPAX1207 13mm 10mm 40 1225mm
XPA1232 SPAX1232 13mm 10mm 40 1250mm
XPA1250 SPAX1250 13mm 10mm 40 1268mm
XPA1257 SPAX1257 13mm 10mm 40 1275mm
XPA1272 SPAX1272 13mm 10mm 40 1290mm
XPA1282 SPAX1282 13mm 10mm 40 1300mm
XPA1300 SPAX1300 13mm 10mm 40 1318mm
XPA1307 SPAX1307 13mm 10mm 40 1325mm
XPA1320 SPAX1320 13mm 10mm 40 1338mm
XPA1332 SPAX1332 13mm 10mm 40 1350mm
XPA1340 SPAX1340 13mm 10mm 40 1358mm
XPA1357 SPAX1357 13mm 10mm 40 1375mm
XPA1360 SPAX1360 13mm 10mm 40 1378mm
XPA1375 SPAX1375 13mm 10mm 40 1393mm
XPA1382 SPAX1382 13mm 10mm 40 1400mm
SPAX1400 - 13mm 10mm 40 1418mm
XPA1407 SPAX1407 13mm 10mm 40 1425mm
XPA1425 SPAX1425 13mm 10mm 40 1443mm
XPA1430 SPAX1430 13mm 10mm 40 1448mm
XPA1432 SPAX1432 13mm 10mm 40 1450mm
XPA1450 SPAX1450 13mm 10mm 40 1768mm
XPA1457 SPAX1457 13mm 10mm 40 1475mm
XPA1482 SPAX1482 13mm 10mm 40 1500mm
XPA1500 SPAX1500 13mm 10mm 40 1518mm
XPA1507 SPAX1507 13mm 10mm 40 1525mm
XPA1525 SPAX1525 13mm 10mm 40 1543mm
XPA1532 SPAX1532 13mm 10mm 40 1550mm
XPA1550 SPAX1550 13mm 10mm 40 1568mm
XPA1557 SPAX1557 13mm 10mm 40 1575mm
XPA1582 SPAX1582 13mm 10mm 40 1600mm
XPA1600 SPAX1600 13mm 10mm 40 1618mm
XPA1607 SPAX1607 13mm 10mm 40 1625mm
XPA1630 SPAX1630 13mm 10mm 40 1648mm
XPA1632 SPAX1632 13mm 10mm 40 1650mm
XPA1650 SPAX1650 13mm 10mm 40 1668mm
XPA1657 SPAX1657 13mm 10mm 40 1675mm
XPA1662 SPAX1662 13mm 10mm 40 1680mm
XPA1675 SPAX1675 13mm 10mm 40 1693mm
XPA1680 SPAX1680 13mm 10mm 40 1698mm
XPA1682 SPAX1682 13mm 10mm 40 1700mm
XPA1700 SPAX1700 13mm 10mm 40 1718mm
XPA1707 SPAX1707 13mm 10mm 40 1725mm
XPA1732 SPAX1732 13mm 10mm 40 1750mm
XPA1750 SPAX1750 13mm 10mm 40 1768mm
XPA1757 SPAX1757 13mm 10mm 40 1775mm
XPA1782 SPAX1782 13mm 10mm 40 1800mm
XPA1800 SPAX1800 13mm 10mm 40 1818mm
XPA1807 SPAX1807 13mm 10mm 40 1825mm
XPA1832 SPAX1832 13mm 10mm 40 1850mm
XPA1850 SPAX1850 13mm 10mm 40 1868mm
XPA1857 SPAX1857 13mm 10mm 40 1875mm
XPA1882 SPAX1882 13mm 10mm 40 1900mm
XPA1900 SPAX1900 13mm 10mm 40 1918mm
XPA1907 SPAX1907 13mm 10mm 40 1925mm
XPA1932 SPAX1932 13mm 10mm 40 1950mm
XPA1950 SPAX1950 13mm 10mm 40 1968mm
XPA1982 SPAX1982 13mm 10mm 40 2000mm
XPA2000 SPAX2000 13mm 10mm 40 2018mm
XPA2032 SPAX2032 13mm 10mm 40 2050mm
XPA2057 SPAX2057 13mm 10mm 40 2075mm
XPA2082 SPAX2082 13mm 10mm 40 2100mm
XPA2120 SPAX2120 13mm 10mm 40 2138mm
XPA2132 SPAX2132 13mm 10mm 40 2150mm
XPA2182 SPAX2182 13mm 10mm 40 2200mm
XPA2207 SPAX2207 13mm 10mm 40 2225mm
XPA2227 SPAX2227 13mm 10mm 40 2245mm
XPA2232 SPAX2232 13mm 10mm 40 2250mm
XPA2240 SPAX2240 13mm 10mm 40 2258mm
XPA2282 SPAX2282 13mm 10mm 40 2300mm
XPA2300 SPAX2300 13mm 10mm 40 2318mm
XPA2307 SPAX2307 13mm 10mm 40 2325mm
XPA2332 SPAX2332 13mm 10mm 40 2350mm
XPA2360 SPAX2360 13mm 10mm 40 2378mm
XPA2382 SPAX2382 13mm 10mm 40 2400mm
XPA2432 SPAX2432 13mm 10mm 40 2450mm
XPA2482 SPAX2482 13mm 10mm 40 2500mm
XPA2500 SPAX2500 13mm 10mm 40 2518mm
