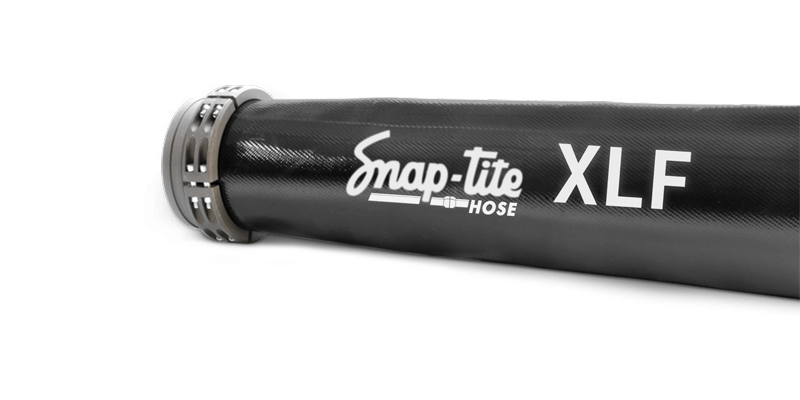

XLF15X100K15NBR by Snap-Tite | XLF Series | Polyurethane Covered Hose Assembly with Polyester Reinforcement | 1-1/2" Hose I.D. | 1-1/2" Male NH x 1-1/2" Female NH Rocker Lug Couplings | 300 PSI | Black | 100ft Length

XLF15X100K15NBR by Snap-Tite | XLF Series | Polyurethane Covered Hose Assembly with Polyester Reinforcement | 1-1/2" Hose I.D. | 1-1/2" Male NH x 1-1/2" Female NH Rocker Lug Couplings | 300 PSI | Black | 100ft Length

Sale price$534.88

Snap-Tite Hose
XLF™ - DURABLE & RESISTANT TO PUNCTURE HOSE

This hose may take 1-2 weeks to ship.

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $502.79
15–29 $454.65
30+ $401.16
Discounts applied in cart/checkout.

Product Data:

Series:
  • XLF Series
Color(s):
  • Black
Internal Diameter:
  • 1-1/2in
Model: XLF™
Basic Construction: Polyurethane extruded thru-the-weave with a polyester reinforcement.
Application: Industrial, Agriculture, Military
Colors: Black, Blue
Temperature Range: -60° F - 180° F
Description:
The XLF™ is a polyurethane thru-the-weave large diameter hose engineered for long-lasting durability and performance in the field. Originally designed to replace metal pipes used in the fracking industry for transfer of large volumes of water, it makes a great main feeder line. The XLF™ is designed for extreme resistance to abrasion and punctures with little friction loss - all while being exceptionally lightweight.
Features:
  • Multi-purpose large diameter hose for oil/gas, water transfer, dewatering, refineries for tank fire suppression, nuclear, agriculture, military, and water/sewer bypasses during construction.
  • The XLF™ inner jacket is designed with 100% high tenacity polyester yarn and extruded thru-the-weave polyurethane - a unified, construction that ensures no delamination and provides abrasion protection.
  • Hose can withstand exposure to most hydro-carbons, gasoline oils, alkalis, and grease.
  • Hose shows no ozone exposure when subjected to testing in accordance with ASTM D1149-64, 100 PPHM /122 degrees F/70 hours.
  • Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certified quality assurance system.
Black
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" XLF15X25K15N XLF15X50K15N XLF15X100K15N 300 psi 600 psi 900 psi 0.24 750,000+
XLF15X25K15NBR XLF15X50K15NBR XLF15X100K15NBR
2" XLF20X25K15N XLF20X50K15N XLF20X100K15N 300 psi 600 psi 900 psi 0.31 750,000+
2-1/2" XLF25X25K25N XLF25X50K25N XLF25X100K25N 300 psi 600 psi 900 psi 0.53 750,000+
XLF25X25K25NBR XLF25X50K25NBR XLF25X100K25NBR
3" XLF30X25K25N XLF30X50K25N XLF30X100K25N 200 psi 400 psi 600 psi 0.62 750,000+
4" XLF40X25K40S XLF40X50K40S XLF40X100K40S 200 psi 400 psi 500 psi 0.86 750,000+
5" XLF50X25K50S XLF50X50K50S XLF50X100K50S 200 psi 400 psi 600 psi 1.36 750,000+
6" XLF60X25K60S XLF60X50K60S XLF60X100K60S 200 psi 400 psi 600 psi 1.40 750,000+
7-1/4" XLF72X25K60S XLF72X50K60S XLF72X100K60S 300 psi 600 psi 750 psi 2 750,000+
8" XLF80X25K80S XLF80X50K80S XLF80X100K80S 225 psi 450 psi 675 psi 2.4 750,000+
10" XLF100X25K100S XLF100X50K100S XLF100X100K100S 200 psi 400 psi 600 psi 2.7 750,000+
Blue
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" XLF15X25B15N XLF15X50B15N XLF15X100B15N 300 psi 600 psi 900 psi 0.24 750,000+
XLF15X25B15NBR XLF15X50B15NBR XLF15X100B15NBR
2" XLF20X25B15N XLF20X50B15N XLF20X100B15N 300 psi 600 psi 900 psi 0.31 750,000+
2-1/2" XLF25X25B25N XLF25X50B25N XLF25X100B25N 300 psi 600 psi 900 psi 0.53 750,000+
XLF25X25B25NBR XLF25X50B25NBR XLF25X100B25NBR
3" XLF30X25B25N XLF30X50B25N XLF30X100B25N 200 psi 400 psi 600 psi 0.62 750,000+
4" XLF40X25B40S XLF40X50B40S XLF40X100B40S 200 psi 400 psi 500 psi 0.86 750,000+
5" XLF50X25B50S XLF50X50B50S XLF50X100B50S 200 psi 400 psi 600 psi 1.36 750,000+
6" XLF60X25B60S XLF60X50B60S XLF60X100B60S 200 psi 400 psi 600 psi 1.40 750,000+
7-1/4" XLF72X25B60S XLF72X50B60S XLF72X100B60S 300 psi 600 psi 750 psi 2 750,000+
8" XLF80X25B80S XLF80X50B80S XLF80X100B80S 225 psi 450 psi 675 psi 2.4 750,000+
10" XLF100X25B100S XLF100X50B100S XLF100X100B100S 200 psi 400 psi 600 psi 2.7 750,000+

*1-year warranty.

*Potable water approved: Yes

*Quality Management System Certification: ISO 9001:2015 Registration # 11-R1045
