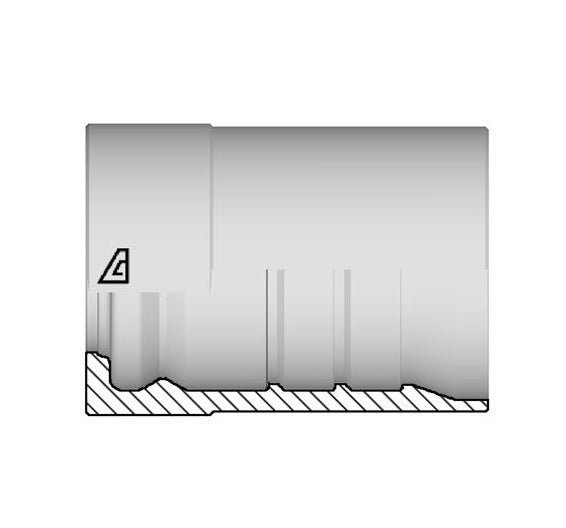

XF1-24 Alfagomma by Kuriyama | XF1 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule | -24 Hose Dash Size | 1-1/2" Hose ID | Steel

XF1-24 Alfagomma by Kuriyama | XF1 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule | -24 Hose Dash Size | 1-1/2" Hose ID | Steel

Sale price$55.72

Kuriyama of America Inc.
Alfagomma | XF1 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule
Buy More, Save More!
Quantity Price Each
10–39 $52.38
40–79 $47.36
80+ $41.79
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • XF1 Series
Material(s):
  • Steel
About XF1 Series Fittings:
  • Two piece Interlock ferrule for use with "X" Interlock insert on spiral wire reinforced hoses. Requires internal and external skiving.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size B
OD		 L
Length		 Weight
Dash
Size		 (in.) (mm) (mm) (mm) lbs/each
XF1-24 24 1-1/2" 38.1mm 69.5mm 94.1mm 1.90 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
