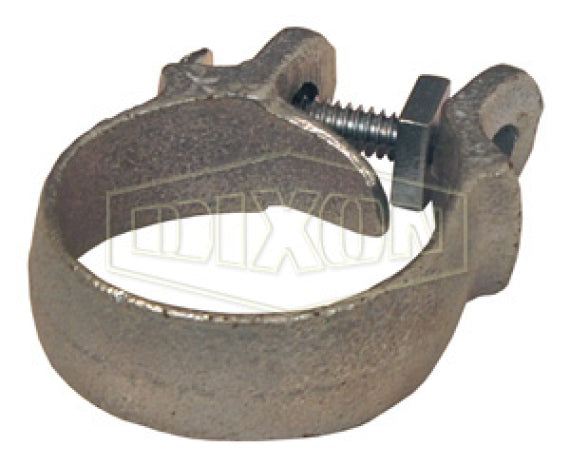

X27 by Dixon Valve | Single Bolt Clamp | Hose OD Range: from 4-40/64" to 4-56/64" | Plated Iron
Dixon

X27 by Dixon Valve | Single Bolt Clamp | Hose OD Range: from 4-40/64" to 4-56/64" | Plated Iron

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Note:
  • Measure hose O.D. accurately before ordering clamps.
  • Torque values for clamps are based on dry bolts.
  • The use of lubricant on bolts will adversely effect clamp performance.
Plated Iron
Part Number		 Hose O.D. Range Torque
in ft. lbs.
from to
2 56/64" 1" 6
4 1-4/64" 1-12/64" 6
6 1-16/64" 1-24/64" 6
10 1-42/64" 1-48/64" 6
11 1-48/64" 1-56/64" 6
15 2-16/64" 2-26/64" 12
16 2-24/64" 2-32/64" 12
25 4-8/64" 4-20/64" 21
X27 4-40/64" 4-56/64" 21
