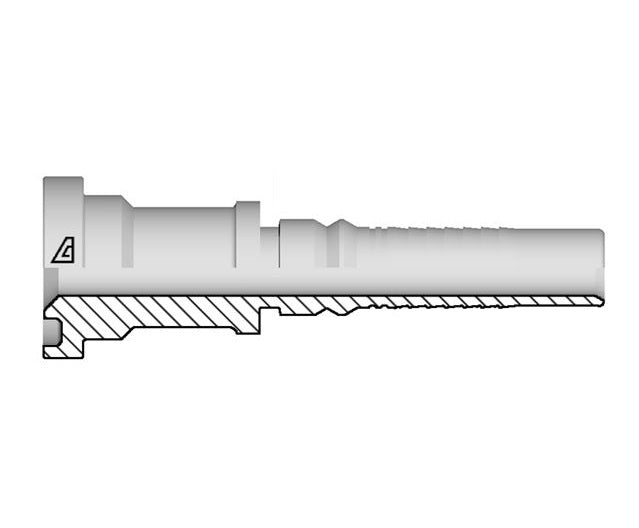

X-3232-C61S Alfagomma by Kuriyama | X Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | -32 Hose ID x -32 Code 61 O-Ring Flange Interlock | Steel

X-3232-C61S Alfagomma by Kuriyama | X Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | -32 Hose ID x -32 Code 61 O-Ring Flange Interlock | Steel

Sale price$115.27

Kuriyama of America Inc.
Alfagomma | X Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 61 O-Ring Flange Interlock
Buy More, Save More!
Quantity Price Each
5–19 $108.35
20–59 $97.98
60+ $86.45
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • X Series
Shape:

Straight
About X Series Fittings:
  • Two-piece Interlock insert for spiral wire reinforced hoses.
  • Requires both internal and external skiving and a XF1 or XF2 Interlock ferrule to perform properly.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size Q Flange C
Cut-Off Factor		 Max. Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) PSI lbs/each
X-2424-C61S 24 1-1/2" 38.1mm 2.38" 60.3mm 56.0mm 3000 PSI 1.81 lbs
X-3232-C61S 32 2" 50.8mm 2.81" 71.4mm 69.0mm 3000 PSI 2.87 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
