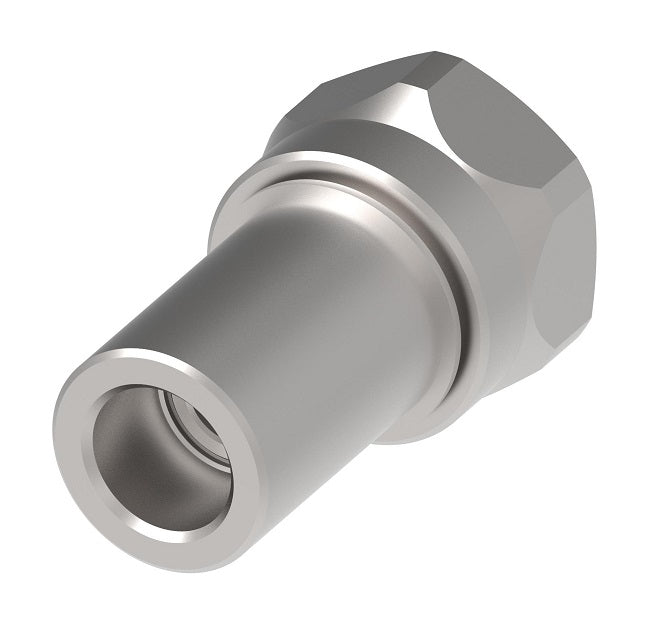

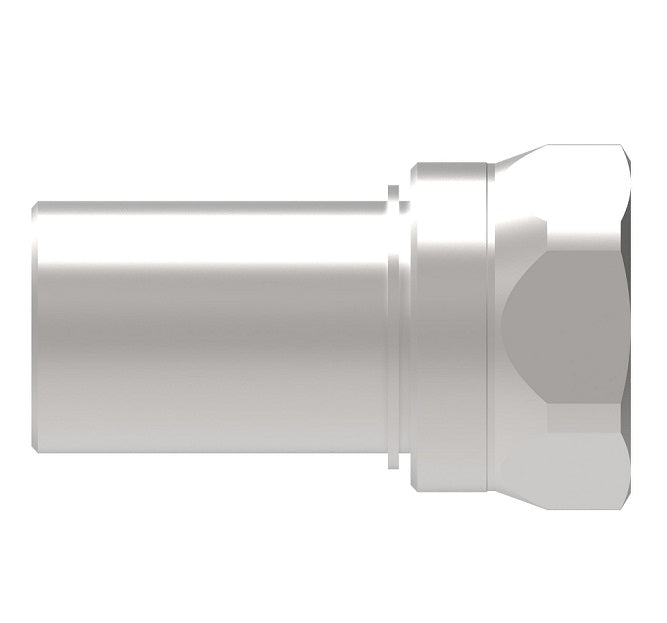

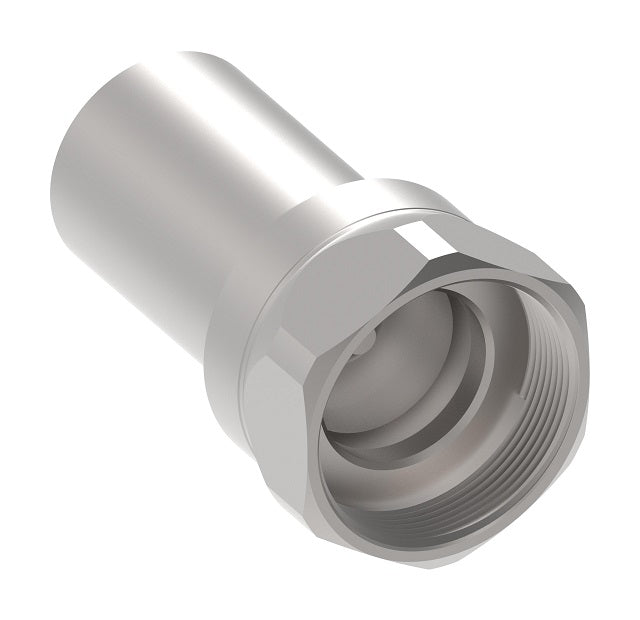

WV06247V0 Hansen® by Danfoss | Quick Disconnect Coupling | W6000 Series | 3/4" Female NPT x 3/4" Thread-to-Connect | Socket | FKM Seal | Stainless Steel
WV06247V0 Hansen® by Danfoss | Quick Disconnect Coupling | W6000 Series | 3/4" Female NPT x 3/4" Thread-to-Connect | Socket | FKM Seal | Stainless Steel
WV06247V0 Hansen® by Danfoss | Quick Disconnect Coupling | W6000 Series | 3/4" Female NPT x 3/4" Thread-to-Connect | Socket | FKM Seal | Stainless Steel

WV06247V0 Hansen® by Danfoss | Quick Disconnect Coupling | W6000 Series | 3/4" Female NPT x 3/4" Thread-to-Connect | Socket | FKM Seal | Stainless Steel

Sale price$794.44

Hansen® by Danfoss
W6000 Series | Thread-to-Connect (Stainless Steel)

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen W6000 Series stainless steel quick disconnect coupling is a thread-to-connect with a rugged construction.

This quick disconnect coupling utilizes 1.4418 grade stainless steel, which guarantees the same mechanical resistance as the steel version while offering excellent resistance in corrosive environments.

It remains the coupling of choice in offshore oil & gas applications but also covers a wide range of alternative hydraulic applications.
Buy More, Save More!
Quantity Price Each
5–14 $746.77
15–29 $675.27
30+ $595.83
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • W6000 Series
Shape:

Straight
Product Features:
  • Proprietary profile.
  • Thread-to-connect with double shut-off valving.
  • Resistance to heavy mechanical loads (hydraulic shocks, severe pulsating pressures, etc).
  • Can be connected under residual pressure
Applications & Markets:
  • Construction.
  • Oil & Gas.
  • Material Handling.
  • All industrial and severe applications.
  • Systems subject to heavy mechanical loads, high pressures.
Materials:
  • Standard body material: Stainless Steel 1.4418
  • Standard seal material*: FKM (-4°F +392°F/-20°C +200°C)
European Pressure Equipment Directive:
  • Couplings with nominal diameters up to and including 25 mm are designed and manufactured under Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU. Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with the stipulations of Module A of the European Pressure Equipment Directive PED 2014/68/EU. They should not be used to convey unstable gases.
  • Group 1 = Hazardous media / Group 2 = Other media

* For reference only, based on Danfoss recommended temperatures.

Body
Size		 Nominal Flow
Diameter		 Max. Operating Pressure* Maximum Residual Pressure
During Connection***		 Rated Flow** Fluid Loss
Non hazardous
Liquids & Gases
in Group 2		 Hazardous
Liquids & Gases
in Group 1
1/4" 5.7mm 1,100 bar 15,950 psi 1,100 bar 15,950 psi 30 bar 435 psi 11.6 lpm 3.06 gpm 1.1 ml-cc
3/8" 7.6mm 750 bar 10,875 psi 750 bar 10,875 psi 30 bar 435 psi 16.7 lpm 4.41 gpm 1.9 ml-cc
1/2" 10.3mm 750 bar 10,875 psi 750 bar 10,875 psi 30 bar 435 psi 25.5 lpm 6.74 gpm 2.8 ml-cc
3/4" 14.2mm 650 bar 9,425 psi 650 bar 9,425 psi 50 bar 725 psi 55 lpm 14.53 gpm 5.8 ml-cc
1" 16.5mm 450 bar 6,525 psi 450 bar 6,525 psi 30 bar 435 psi 87 lpm 22.98 gpm 10.9 ml-cc

* For pulsating pressures when disconnected apply a multiplier of 0.5.
** Indicated values refer to a 1 bar/14.5 psi pressure drop.
*** When connecting under pressure, the socket nut thread must be lubricated.
Socket/Female (Figure 1)
Plug/Male (Figure 2)
W6000 Series | Thread-to-Connect
Part Number Body
Size		 Nominal Flow
Diameter		 Coupling
Type		 Thread Figure Dimensions
Socket/Female Plug/Male
FKM A B C Across
Flats		 Hex D E F G Across
Flats
WV06217V0 1/4" 5.7mm Socket/Female 1/4-18 Female NPT 1 2.09"
(53mm)		 1.38"
(35mm)		 0.83"
(21mm)		 0.75"
(19mm)		 1.26"
(32mm)		 - - - - -
WV06214V0 1/4" 5.7mm Plug/Male 1/4-18 Female NPT 2 - - - - - 1.38"
(35mm)		 0.59"
(15mm)		 0.90"
(23mm)		 0.45"
(11.5mm)		 0.75"
(19mm)
WV06227V0 3/8" 10.3mm Socket/Female 1/2-14 Female NPT 1 2.91"
(74mm)		 1.77"
(45mm)		 1.14"
(29mm)		 1.06"
(27mm)		 1.61"
(41mm)		 - - - - -
WV06224V0 3/8" 7.6mm Plug/Male 3/8-18 Female NPT 2 - - - - - 1.65"
(42mm)		 0.75"
(19mm)		 1.02"
(26mm)		 0.52"
(13mm)		 0.90"
(23mm)
WV06024V0 3/8" 7.6mm Plug/Male 3/8-19 Female BSPP 2 - - - - - 1.65"
(42mm)		 0.75"
(19mm)		 1.02"
(26mm)		 0.52"
(13mm)		 0.90"
(23mm)
WV06014V0 1/4" 5.7mm Plug/Male 1/4-19 Female BSPP 2 - - - - - 1.38"
(35mm)		 0.59"
(15mm)		 0.90"
(23mm)		 0.45"
(11.5mm)		 0.75"
(19mm)
WV06037V0 1/2" 10.3mm Socket/Female 1/2-14 Female BSPP 1 2.91"
(74mm)		 1.77"
(45mm)		 1.14"
(29mm)		 1.06"
(27mm)		 1.61"
(41mm)		 - - - - -
WV06034V0 1/2" 10.3mm Plug/Male 1/2-14 Female BSPP 2 - - - - - 1.97"
(50mm)		 0.87"
(22mm)		 1.26"
(32mm)		 0.77"
(19.5mm)		 1.06"
(27mm)
WV06237V0 1/2" 10.3mm Socket/Female 1/2-14 Female NPT 1 2.91"
(74mm)		 1.77"
(45mm)		 1.14"
(29mm)		 1.06"
(27mm)		 1.61"
(41mm)		 - - - - -
WV06234V0 1/2" 10.3mm Plug/Male 1/2-14 Female NPT 2 - - - - - 1.97"
(50mm)		 0.87"
(22mm)		 1.26"
(32mm)		 0.77"
(19.5mm)		 1.06"
(27mm)
WV06247V0 3/4" 14.2mm Socket/Female 3/4-14 Female NPT 1 3.58"
(91mm)		 2.16"
(55mm)		 1.50"
(38mm)		 1.38"
(35mm)		 1.97"
(50mm)		 - - - - -
WV06257V0 1" 16.5mm Socket/Female 1-11-1/2 Female NPT 1 4.05"
(103mm)		 2.72"
(69mm)		 1.81"
(46mm)		 1.61"
(41mm)		 2.56"
(65mm)		 - - - - -
WV06254V0 1" 16.5mm Plug/Male 1-11-1/2 Female NPT 2 - - - - - 2.80"
(71mm)		 1.42"
(36mm)		 1.89"
(48mm)		 1.14"
(29mm)		 1.61"
(41mm)

To obtain connected length of coupling add dimensions A (Fig.1) and G (Fig. 2) together.


W6000 Series | Dust Plugs and Dust Caps
Dust Plug
Part Number		 Dust Cap
Part Number		 Body
Size
- WD0611400 1/4"
WD0612700 WD0612400 3/8"
WD0613700 WD0613400 1/2"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
