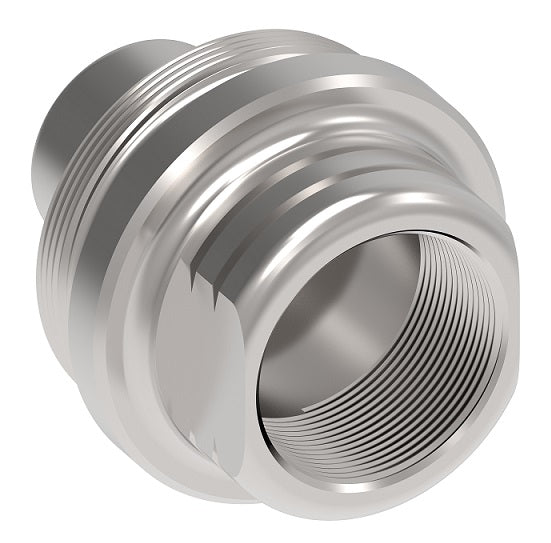

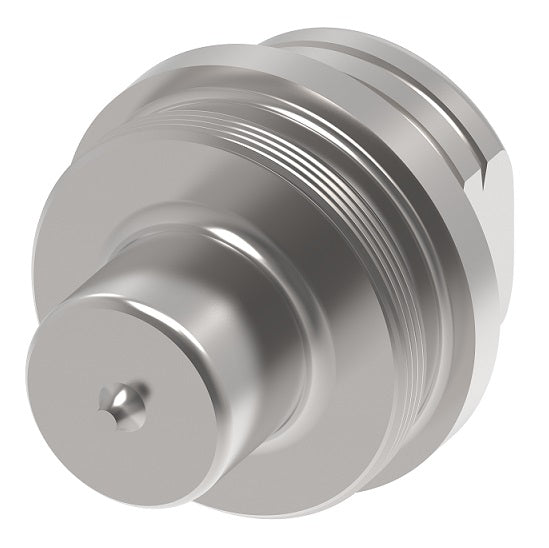

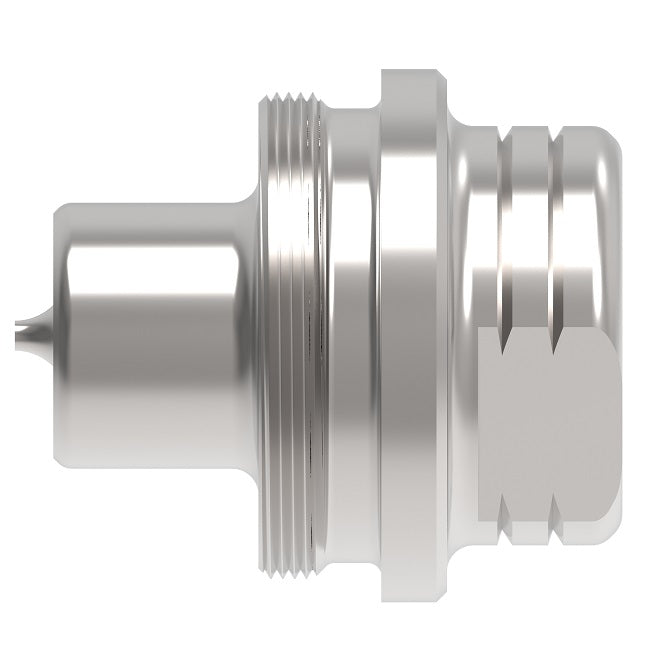

WV06224V0 Hansen® by Danfoss | Quick Disconnect Coupling | W6000 Series | 3/8" Female NPT x 3/8" Thread-to-Connect | Plug | FKM Seal | Stainless Steel
WV06224V0 Hansen® by Danfoss | Quick Disconnect Coupling | W6000 Series | 3/8" Female NPT x 3/8" Thread-to-Connect | Plug | FKM Seal | Stainless Steel
WV06224V0 Hansen® by Danfoss | Quick Disconnect Coupling | W6000 Series | 3/8" Female NPT x 3/8" Thread-to-Connect | Plug | FKM Seal | Stainless Steel

WV06224V0 Hansen® by Danfoss | Quick Disconnect Coupling | W6000 Series | 3/8" Female NPT x 3/8" Thread-to-Connect | Plug | FKM Seal | Stainless Steel

Sale price$175.92
Buy more, save moreDiscounts applied in cart/checkout.
Product Features:
  • Proprietary profile.
  • Thread-to-connect with double shut-off valving.
  • Resistance to heavy mechanical loads (hydraulic shocks, severe pulsating pressures, etc).
  • Can be connected under residual pressure
Applications & Markets:
  • Construction.
  • Oil & Gas.
  • Material Handling.
  • All industrial and severe applications.
  • Systems subject to heavy mechanical loads, high pressures.
Materials:
  • Standard body material: Stainless Steel 1.4418
  • Standard seal material*: FKM (-4°F +392°F/-20°C +200°C)
European Pressure Equipment Directive:
  • Couplings with nominal diameters up to and including 25 mm are designed and manufactured under Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU. Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with the stipulations of Module A of the European Pressure Equipment Directive PED 2014/68/EU. They should not be used to convey unstable gases.
  • Group 1 = Hazardous media / Group 2 = Other media

* For reference only, based on Danfoss recommended temperatures.

Body
Size		 Nominal Flow
Diameter		 Max. Operating Pressure* Maximum Residual Pressure
During Connection***		 Rated Flow** Fluid Loss
Non hazardous
Liquids & Gases
in Group 2		 Hazardous
Liquids & Gases
in Group 1
1/4" 5.7mm 1,100 bar 15,950 psi 1,100 bar 15,950 psi 30 bar 435 psi 11.6 lpm 3.06 gpm 1.1 ml-cc
3/8" 7.6mm 750 bar 10,875 psi 750 bar 10,875 psi 30 bar 435 psi 16.7 lpm 4.41 gpm 1.9 ml-cc
1/2" 10.3mm 750 bar 10,875 psi 750 bar 10,875 psi 30 bar 435 psi 25.5 lpm 6.74 gpm 2.8 ml-cc
3/4" 14.2mm 650 bar 9,425 psi 650 bar 9,425 psi 50 bar 725 psi 55 lpm 14.53 gpm 5.8 ml-cc
1" 16.5mm 450 bar 6,525 psi 450 bar 6,525 psi 30 bar 435 psi 87 lpm 22.98 gpm 10.9 ml-cc

* For pulsating pressures when disconnected apply a multiplier of 0.5.
** Indicated values refer to a 1 bar/14.5 psi pressure drop.
*** When connecting under pressure, the socket nut thread must be lubricated.
Socket/Female (Figure 1)
Plug/Male (Figure 2)
W6000 Series | Thread-to-Connect
Part Number Body
Size		 Nominal Flow
Diameter		 Coupling
Type		 Thread Figure Dimensions
Socket/Female Plug/Male
FKM A B C Across
Flats		 Hex D E F G Across
Flats
WV06217V0 1/4" 5.7mm Socket/Female 1/4-18 Female NPT 1 2.09"
(53mm)		 1.38"
(35mm)		 0.83"
(21mm)		 0.75"
(19mm)		 1.26"
(32mm)		 - - - - -
WV06214V0 1/4" 5.7mm Plug/Male 1/4-18 Female NPT 2 - - - - - 1.38"
(35mm)		 0.59"
(15mm)		 0.90"
(23mm)		 0.45"
(11.5mm)		 0.75"
(19mm)
WV06227V0 3/8" 10.3mm Socket/Female 1/2-14 Female NPT 1 2.91"
(74mm)		 1.77"
(45mm)		 1.14"
(29mm)		 1.06"
(27mm)		 1.61"
(41mm)		 - - - - -
WV06224V0 3/8" 7.6mm Plug/Male 3/8-18 Female NPT 2 - - - - - 1.65"
(42mm)		 0.75"
(19mm)		 1.02"
(26mm)		 0.52"
(13mm)		 0.90"
(23mm)
WV06024V0 3/8" 7.6mm Plug/Male 3/8-19 Female BSPP 2 - - - - - 1.65"
(42mm)		 0.75"
(19mm)		 1.02"
(26mm)		 0.52"
(13mm)		 0.90"
(23mm)
WV06014V0 1/4" 5.7mm Plug/Male 1/4-19 Female BSPP 2 - - - - - 1.38"
(35mm)		 0.59"
(15mm)		 0.90"
(23mm)		 0.45"
(11.5mm)		 0.75"
(19mm)
WV06037V0 1/2" 10.3mm Socket/Female 1/2-14 Female BSPP 1 2.91"
(74mm)		 1.77"
(45mm)		 1.14"
(29mm)		 1.06"
(27mm)		 1.61"
(41mm)		 - - - - -
WV06034V0 1/2" 10.3mm Plug/Male 1/2-14 Female BSPP 2 - - - - - 1.97"
(50mm)		 0.87"
(22mm)		 1.26"
(32mm)		 0.77"
(19.5mm)		 1.06"
(27mm)
WV06237V0 1/2" 10.3mm Socket/Female 1/2-14 Female NPT 1 2.91"
(74mm)		 1.77"
(45mm)		 1.14"
(29mm)		 1.06"
(27mm)		 1.61"
(41mm)		 - - - - -
WV06234V0 1/2" 10.3mm Plug/Male 1/2-14 Female NPT 2 - - - - - 1.97"
(50mm)		 0.87"
(22mm)		 1.26"
(32mm)		 0.77"
(19.5mm)		 1.06"
(27mm)
WV06247V0 3/4" 14.2mm Socket/Female 3/4-14 Female NPT 1 3.58"
(91mm)		 2.16"
(55mm)		 1.50"
(38mm)		 1.38"
(35mm)		 1.97"
(50mm)		 - - - - -
WV06257V0 1" 16.5mm Socket/Female 1-11-1/2 Female NPT 1 4.05"
(103mm)		 2.72"
(69mm)		 1.81"
(46mm)		 1.61"
(41mm)		 2.56"
(65mm)		 - - - - -
WV06254V0 1" 16.5mm Plug/Male 1-11-1/2 Female NPT 2 - - - - - 2.80"
(71mm)		 1.42"
(36mm)		 1.89"
(48mm)		 1.14"
(29mm)		 1.61"
(41mm)

To obtain connected length of coupling add dimensions A (Fig.1) and G (Fig. 2) together.


W6000 Series | Dust Plugs and Dust Caps
Dust Plug
Part Number		 Dust Cap
Part Number		 Body
Size
- WD0611400 1/4"
WD0612700 WD0612400 3/8"
WD0613700 WD0613400 1/2"

Additional Product Data:

Brand:
  • Hansen
Series:
  • W6000 Series
Shape:

Straight
