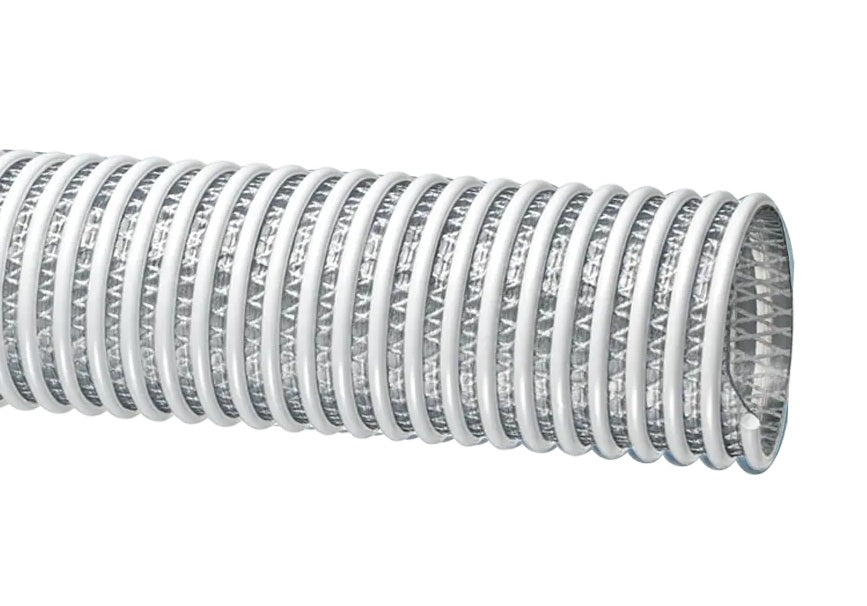

WSTF150X100 Tigerflex® by Kuriyama | WSTF™ Series | Food Grade Fabric Reinforced Liquid Suction & Discharge Hose | PVC | 1-1/2" ID | 1.95" OD | 100ft Length
Tigerflex® | WSTF™ Series | Food Grade Fabric Reinforced Liquid Suction & Discharge Hose | PVC
Ideal for transferring food-grade liquids such as wine, beer, and juice, as well as ice transfer, and suction and discharge applications.
Made in the USA.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $590.77 |
| 15–29 | $534.21 |
| 30+ | $502.78 |
Kuriyama Tigerflex® WSTF Series
Transparent, fabric-reinforced PVC hose designed for suction and discharge of food-grade liquids, ice and similar materials.
Food Grade
FDA, USDA and 3-A compliant materials
See the Flow
Transparent construction provides visual confirmation
Reinforced
Polyester fabric with a rigid PVC helix
Made in USA
Manufactured in the United States
1
What is this product used for?
- Wine, beer and juice transfer
- Food-grade liquid transfer
- Ice transfer
- Suction applications
- Discharge applications
2
What are the key specifications?
Double-ply PVC
Polyester fabric and rigid PVC helix
Not specified
-4°F (-20°C) to +150°F (+65°C)
Transparent, fabric-reinforced PVC
Made in the USA
3
What are the main product features?
- Food-Grade Materials — Complies with applicable FDA, 3-A and USDA requirements.
- Fabric Reinforcement — High-tensile-strength, food-grade polyester yarn reinforcement supports suction and higher-pressure discharge applications.
- Transparent Construction — See-the-flow design allows visual confirmation of material movement.
- Easy-Slide Helix — Rigid helix helps protect the hose tube from wear and allows the hose to slide more easily over rough surfaces.
4
Which sizes are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | lbs/ft | |
| WSTF150X100 | 1-1/2" | 38.1 | 1.95" | 49.5 | 110 PSI | 70 PSI | Full | 28 in Hg | 2-1/2" | 0.42 |
| WSTF200X100 | 2" | 50.8 | 2.60" | 66.0 | 100 PSI | 65 PSI | Full | 28 in Hg | 4" | 0.74 |
| WSTF300X100 | 3" | 76.2 | 3.62" | 92.0 | 100 PSI | 50 PSI | Full | 28 in Hg | 6" | 1.13 |
| WSTF400X100 | 4" | 101.6 | 4.76" | 121.0 | 75 PSI | 37 PSI | Full | 28 in Hg | 8" | 1.74 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional compliance, construction and application information.
How is this product sold?
Available in 100-foot lengths.
