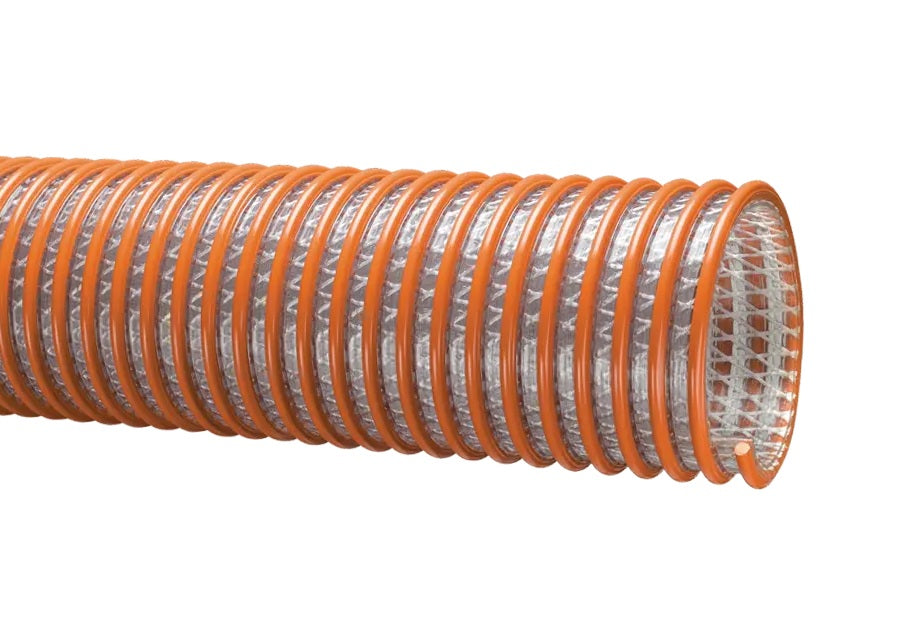

WST600X100 Tigerflex® by Kuriyama | WST™ Series | Heavy-Duty Fabric Reinforced Liquid Suction & Discharge Hose | PVC | 6" ID | 7.17" OD | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Kuriyama Tigerflex™ WST Series
Heavy-duty, fabric-reinforced PVC hose designed for fish suction, irrigation, dewatering, trash-pump service and higher-pressure suction and discharge applications.
Fabric Reinforced
Polyester reinforcement supports suction and higher-pressure discharge service
See-the-Flow
Transparent construction allows visual confirmation of material flow
Easy Slide Helix
Rigid helix protects against wear and slides over rough surfaces
Made in USA
Manufactured in the United States
1
What is this product used for?
- Fish suction
- Irrigation lines
- Rental and construction dewatering pumps
- Trash pumps
- Suction and discharge
- Heavy-duty water suction
2
What are the key specifications?
Double-ply PVC
Polyester fabric and rigid PVC helix
Transparent with an easy-slide helix
-4°F (-20°C) to +150°F (+65°C)
Phthalate free and RoHS
Made in the USA
3
What are the main product features?
- Fabric Reinforcement — A high-tensile-strength polyester yarn jacket supports both suction and higher-pressure discharge applications.
- Transparent Construction — “See-the-flow” design allows visual confirmation of material flow.
- Easy Slide Helix — The rigid helix protects the hose tube from cover wear and allows the hose to slide more easily over rough surfaces.
- Easy to Handle — Designed to provide durable performance while remaining manageable during use.
- Made in the USA — Manufactured in the United States.
4
Which sizes and lengths are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | ft | lbs/ft | |
| WST150X100 | 1-1/2" | 38.1 | 1.95" | 49.5 | 110 PSI | 70 PSI | Full | 28 in Hg | 2-1/2" | 100 | 0.42 |
| WST200X100 | 2" | 50.8 | 2.60" | 66.0 | 100 PSI | 65 PSI | Full | 28 in Hg | 4" | 100 | 0.74 |
| WST300X100 | 3" | 76.2 | 3.62" | 92.0 | 100 PSI | 50 PSI | Full | 28 in Hg | 6" | 100 | 1.13 |
| WST400X100 | 4" | 101.6 | 4.76" | 121.0 | 75 PSI | 37 PSI | Full | 28 in Hg | 8" | 100 | 1.74 |
| WST500X100 | 5" | 127.0 | 5.98" | 151.9 | 70 PSI | 35 PSI | 28 in Hg | 25 in Hg | 11" | 100 | 2.95 |
| WST600X100 | 6" | 152.4 | 7.17" | 182.1 | 70 PSI | 35 PSI | 28 in Hg | 25 in Hg | 13" | 100 | 3.88 |
| WST800X50 | 8" | 203.5 | 9.21" | 234.0 | 60 PSI | 30 PSI | 26 in Hg | 20 in Hg | 18" | 50 | 5.57 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional compliance, construction and application information.
How is this product sold?
Available in 100-foot lengths for sizes 1-1/2 inches through 6 inches, and in a 50-foot length for the 8-inch size.
