WST150X100 Tigerflex by Kuriyama | WST Series | Heavy Duty Fabric Reinforced Suction & Discharge Hose | 1-1/2" ID | PVC | 100ft Length

WST150X100 Tigerflex by Kuriyama | WST Series | Heavy Duty Fabric Reinforced Suction & Discharge Hose | 1-1/2" ID | PVC | 100ft Length

Sale price$589.51

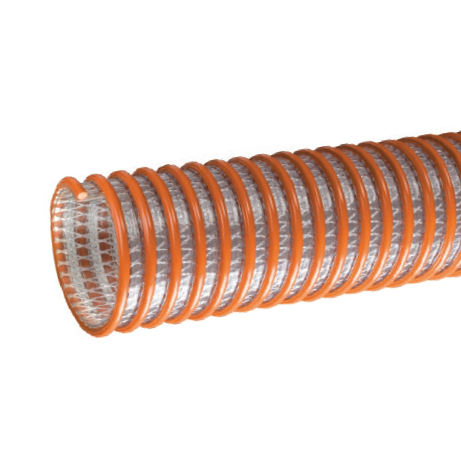

Kuriyama Tigerflex WST™ Series Heavy Duty PVC Fabric Reinforced Suction & Discharge Hose


Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $554.14
15–29 $501.08
30+ $442.13
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tigerflex
Series:
  • WST Series
Color(s):
  • Orange & Clear/Semi-Clear

SPECIFICATIONS

Application: Fish suction, Water suction - heavy duty, Rental and construction dewatering, Irrigation lines Pumps, Trash, Suction and discharge SAE Rating: N/A
Other Ratings: N/A Tube: Double-Ply PVC
Reinforcement: Polyester Fabric, Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Fabric Reinforcement - Designed with high tensile strength polyester yarn jacket to handle both suction and higher pressure discharge applications.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
WST150X100 1-1/2" 38.1mm 1.95" 49.5mm 100 PSI 65 PSI Full 28 in.Hg 2.5" 100ft 0.42 lbs
WST200X100 2" 50.8mm 2.60" 66.0mm 100 PSI 65 PSI Full 28 in .Hg 4" 100ft 0.74 lbs
WST300X100 3" 76.2mm 3.62" 92.0mm 70 PSI 35 PSI Full 28 in .Hg 6" 100ft 1.13 lbs
WST400X100 4" 101.6mm 4.76" 121.0mm 65 PSI 32 PSI Full 28 in .Hg 8" 100ft 1.74 lbs
WST500X100 5" 127.0mm 5.98" 151.9mm 50 PSI 25 PSI 28 in .Hg 25 in .Hg 11" 100ft 2.95 lbs
WST600X100 6" 152.4mm 7.17" 182.1mm 50 PSI 25 PSI 28 in .Hg 25 in .Hg 13" 100ft 3.88 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
