WST-SLR600X100 Tigerflex® SOLARGUARD™ by Kuriyama | WST-SLR™ Series | Heavy-Duty Fabric Reinforced Liquid Suction & Discharge Hose with High UV Resistance | PVC | 6" ID | 7.17" OD | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.

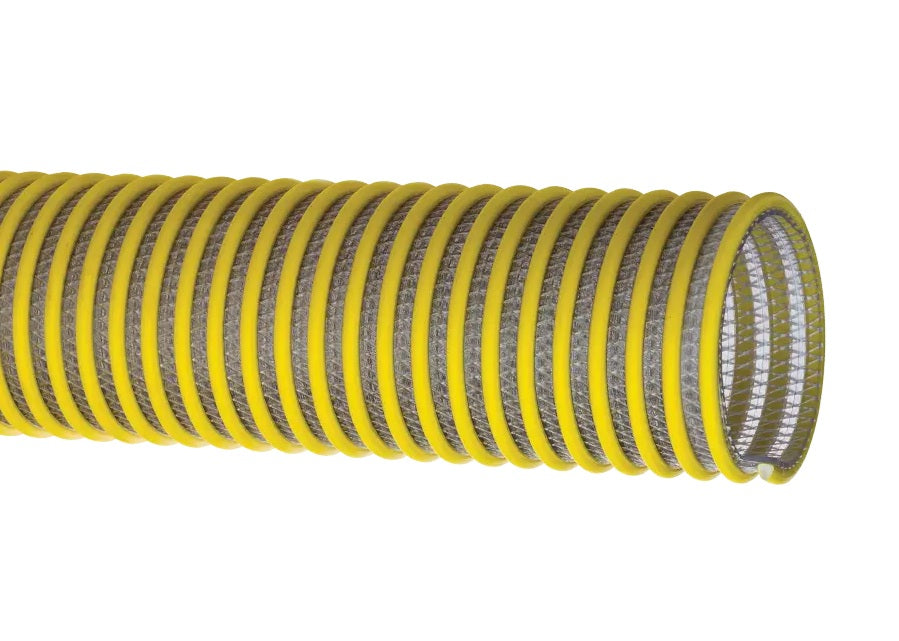

Tigerflex® Solarguard
A heavy-duty, double-ply PVC suction hose with a transparent, UV-protected wall that lets you see the flow. Polyester reinforcement and a rigid PVC helix handle full-vacuum suction and higher-pressure discharge for dewatering, irrigation, and water-transfer work.
UV Protected
Retains ~97% tensile strength after prolonged UV exposure
See-the-Flow
Transparent wall confirms material flow at a glance
Suction & Discharge
Full vacuum plus higher-pressure discharge
Made in the USA
Manufactured in the United States
1
What is this product used for?
- Fish suction
- Irrigation lines
- Pumps — rental & construction dewatering
- Pumps — trash
- Suction & discharge
- Water suction — heavy duty
2
What are the key specifications?
Double-ply PVC
Polyester fabric with rigid PVC helix
-4°F to +150°F (-20°C to +65°C) — application dependent
Phthalate free · RoHS
3
What are the main product features?
- Advanced UV Protection — Specially formulated to resist the cracking caused by damaging UV light. In independent testing, the Solarguard material retained 97% of its original tensile strength after prolonged UV exposure, versus only 55% for comparable PVC hoses.
- Transparent Construction — "See-the-flow" wall allows visual confirmation of material moving through the hose.
- Fabric Reinforcement — High-tensile polyester yarn jacket handles both suction and higher-pressure discharge applications.
- Easy Slide "Safety Yellow" Helix — Highly visible helix makes the hose easy to identify; the rigid design protects the tube from cover wear and slides easily over rough surfaces.
- Made in the USA — Manufactured in the United States.
4
Which sizes or configurations are available?
| Part Number | ID | OD | Working Pressure (PSI) | Vacuum (in Hg) | Min. Bend Radius (in) |
Weight (lbs/ft) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | 68°F | 104°F | 68°F | 104°F | |||
| WST-SLR150X100 | 1-1/2 | 38.1 | 1.95 | 49.5 | 110 | 70 | Full | 28 | 2.5 | 0.42 |
| WST-SLR200X100 | 2 | 50.8 | 2.60 | 66.0 | 100 | 65 | Full | 28 | 4 | 0.74 |
| WST-SLR300X100 | 3 | 76.2 | 3.62 | 92.0 | 100 | 50 | Full | 28 | 6 | 1.13 |
| WST-SLR400X100 | 4 | 101.6 | 4.76 | 121.0 | 75 | 37 | Full | 28 | 8 | 1.74 |
| WST-SLR600X100 | 6 | 152.4 | 7.17 | 182.1 | 70 | 35 | 28 | 25 | 13 | 3.88 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Consult the specifications guide for phthalate-free and RoHS compliance details and additional product information.
How is this product sold?
Sold in 100 ft coil lengths, in sizes from 1-1/2" through 6".
