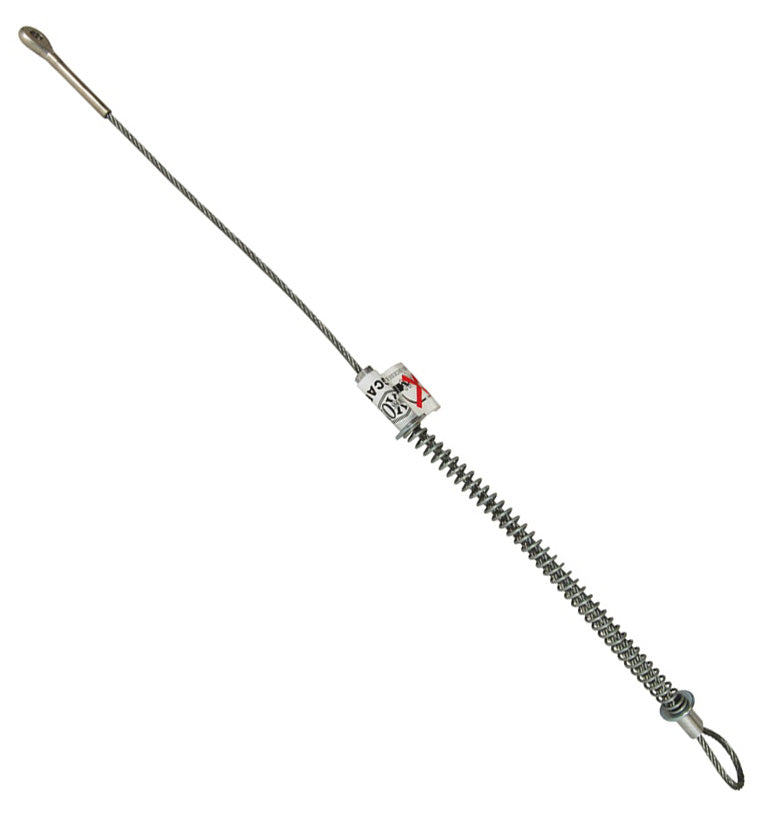

WSR1E by Dixon Valve | King Cable® | Safety Cable | Hose-to-Tool Service | with Safety Marine Eye | 1/2" - 1-1/4" Hose ID | 1/8" Cable Size | Steel
WSR1E by Dixon Valve | King Cable® | Safety Cable | Hose-to-Tool Service | with Safety Marine Eye | 1/2" - 1-1/4" Hose ID | 1/8" Cable Size | Steel
WSR1E by Dixon Valve | King Cable® | Safety Cable | Hose-to-Tool Service | with Safety Marine Eye | 1/2" - 1-1/4" Hose ID | 1/8" Cable Size | Steel

WSR1E by Dixon Valve | King Cable® | Safety Cable | Hose-to-Tool Service | with Safety Marine Eye | 1/2" - 1-1/4" Hose ID | 1/8" Cable Size | Steel

Sale price$56.43
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • King cable is the low cost answer to eliminate injuries caused by broken air hose connections.
  • King safety cable reaches across the hose fittings to provide standby safety for hose. Spring-loaded loops in the cable ends open easily to pass over the couplings for a firm grip on the hose.
  • Thoroughly tested with years of service. A positive safeguard for air hose connections - helps you meet today's safety standards.
  • Highly resistant to rust and corrosion.
Construction:
  • Wire Rope: Galvanized Carbon Steel
  • Ferrules: Aluminum
  • Springs: Galvanized Carbon Steel
Installation:

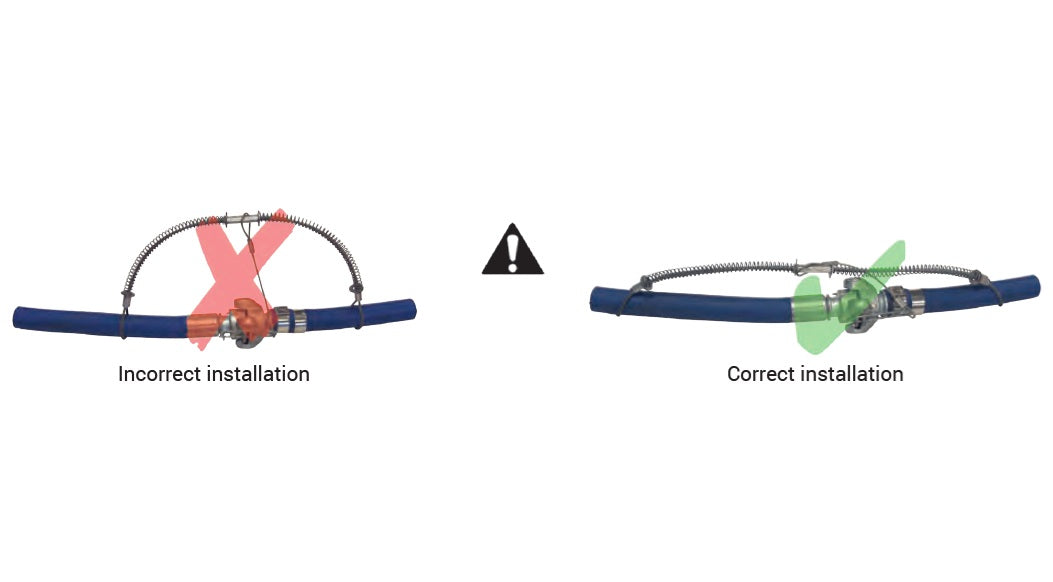

  • Must be installed in the extended position (no slack).
  • No tools needed - easy to install and remove.
  • Cables are shipped with safety restraint labels attached.
Safety Notes:
  • King Safety cable must be installed in the extended position (no slack).
  • The Canada Occupational Safety and Health regulations Part XIII, 13:6b states: "Where an air hose is connected to a portable air powered tool used by an employee, a restraining device shall be attached to all hose connections, in order to prevent injury to an employee in the even of an accidental disconnection of a hose."
Steel
Part Number		 Description Hose I.D. Cable Length Maximum
Working
Pressure
WSR1C WSR1 with safety clip and lanyard used to lock Air King® couplings 1/2" - 1-1/4" 1/8" 20-1/4" 200 PSI
WB1C WB1 with safety clip and lanyard used to lock Air King couplings 1/2" - 1-1/4" 1/8" 20-1/4" 200 PSI
WSR1E WSR1 with stainless steel safety marine eye used to connect safety cable to a bolt on tool 1/2" - 1-1/4" 1/8" 20-1/4" 200 PSI
WA2B WA2 with bronze/copper ferrule for special environmental conditions 1-1/2" - 3" 1/4" 38" 200 PSI

Additional Product Data:

Brand:
  • King Cable
Series:
  • WSR Series

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
