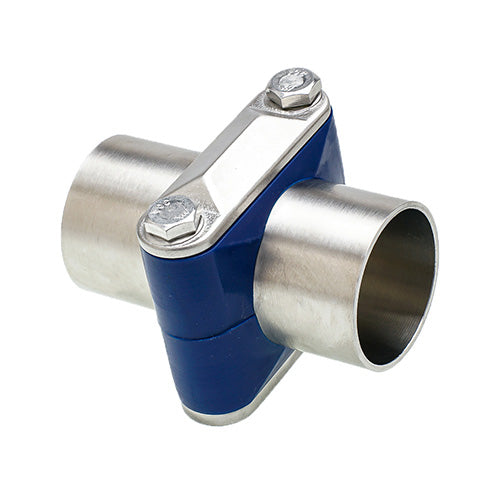

WM-050T-304ZP by ACL Hygienic | Zero Puddle Silicone Weld Mount w/ Tight Fit | 1/2" Tube Size | Blue | 304 Stainless Steel

WM-050T-304ZP by ACL Hygienic | Zero Puddle Silicone Weld Mount w/ Tight Fit | 1/2" Tube Size | Blue | 304 Stainless Steel

Sale price$24.54

ACL Hygienic
Sanitary, Washdown, and Pipe Hanging Systems:Pipe Hanging Systems - Weld Mount
Buy More, Save More!
Quantity Price Each
10–39 $23.07
40–79 $20.86
80+ $18.41
Discounts applied in cart/checkout.

Product Data:

Shape:

["Straight"]

Material(s):
  • Silicone
  • 304 Stainless Steel
Applications:
  • Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semiconductor industries.
  • Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines
Sizes:
  • Support Range: 1/4" – 6" Tube and 1/2" – 6" Pipe for Copper and Conduits including PVC Coated Pipe
  • Tight fit Anchors and loose fit Guides are offered
Features:
  • Reduced OD allows hanger to be encased under the insulation’s jacket
  • ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime
  • There are no exposed threads or openings
Materials:
  • 304 and 316 stainless steels
  • ZERO PUDDLE inserts are FDA grade silicone rubber
Specifications:
  • Intermittent temperatures from -40F to 320F
  • Continues temperatures from -20F to 302F
Benefits:
  • Guides loose fit allow the line to freely expand and contract during thermal cycling, preventing undo stress to welds
  • Hanger’s threaded section is elongated, increasing the housing’s elevation adjustment aiding in slope alignment
  • Insulation Envelope “IE”: Reduced OD allows hanger to be buried under the insulation jacket
  • Insulation Thickness: Line’s ODs are Encased Under Insulation
    • 1.0” of insulation : 1/2” Tube (0.5”) to 3” Copper (3.125”)
    • 1.5” of insulation : 3” Pipe (3.5”) to 4” Pipe (4.50”)
    • 2.0” of insulation : 6” Tube (6.0”) to 6” Pipe (6.625”)
  • There are no exposed threads or openings in hardware plates
  • All plates are cleaned polished
  • Hanger threads match MSS 69 rod OD requirement
Weld Mount: Bottom plate is welded to mounting rod or directly to structure
Part Number
(anchor/tight fit)		 Part Number
(guide/loose fit)		 Tube Size Line OD H L W CL
WM-025T-304ZP - 1/4" 0.25" 1.31" 1.93" 0.75" 0.56"
WM-038T-304ZP - 3/8" 0.38" 1.51" 1.93" 0.75" 0.56"
WM-050T-304ZP WM-050T-304ZPG 1/2" 0.50" 1.73" 1.93" 0.75" 0.79"
WM-075T-304ZP WM-075T-304ZPG 3/4" 0.75" 1.73" 1.93" 0.75" 0.79"
WM-100T-304ZP WM-100T-304ZPG 1" 1.00" 1.73" 1.93" 0.75" 0.79"
WM-150T-304ZP WM-150T-304ZPG 1-1/2" 1.50" 2.23" 2.49" 0.75" 1.03"
WM-200T-304ZP WM-200T-304ZPG 2" 2.00" 2.75" 2.99" 0.88" 1.31"
WM-250T-304ZP WM-250T-304ZPG 2-1/2" 2.50" 3.25" 3.36" 0.88" 1.55"
WM-300T-304ZP WM-300T-304ZPG 3" 3.00" 3.97" 3.99" 0.88" 1.91"
WM-400T-304ZP WM-400T-304ZPG 4" 4.00" 4.87" 5.10" 1.00" 2.39"
