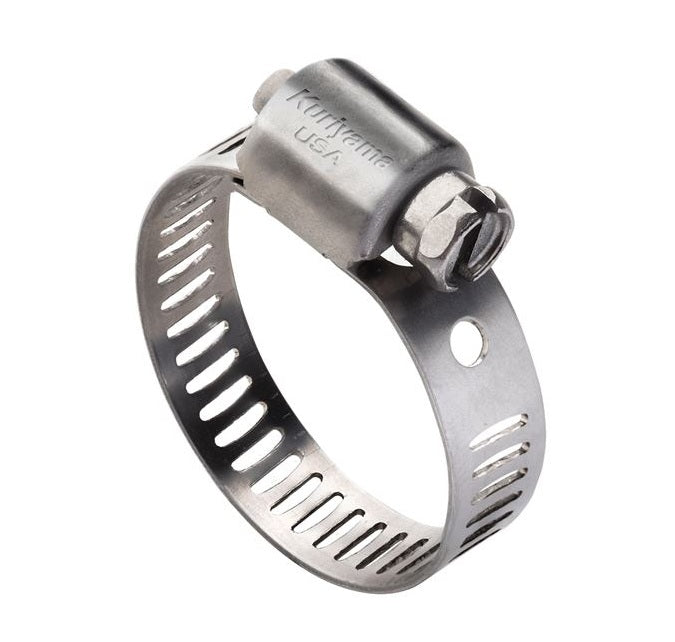

WGC-MCS04 Kuri-Clamp™ by Kuriyama | Mini Worm Gear Hose Clamp | 7/32" to 5/8" Size Range | 5/16" Band Width | Stainless Steel & Plated Carbon Steel | Pack of 10
Kuriyama of America Inc.
Kuri-Clamp™ | WGC-MCS Series | Mini Worm Gear Clamp
Stainless Steel Band & Housing. Plated carbon steel hex screw.
Ideal for Small diameter applications such as air & fuel lines.
Made in the USA.
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $10.89 |
| 40–79 | $9.84 |
| 80+ | $8.69 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Material(s):
Special Properties:
Clamp Width:
0.3125in
Minimum Clamp I.D.:
0.21875in
Maximum Clamp I.D.:
0.625in
What are the Applications?
- Small diameter applications
- Air & fuel lines

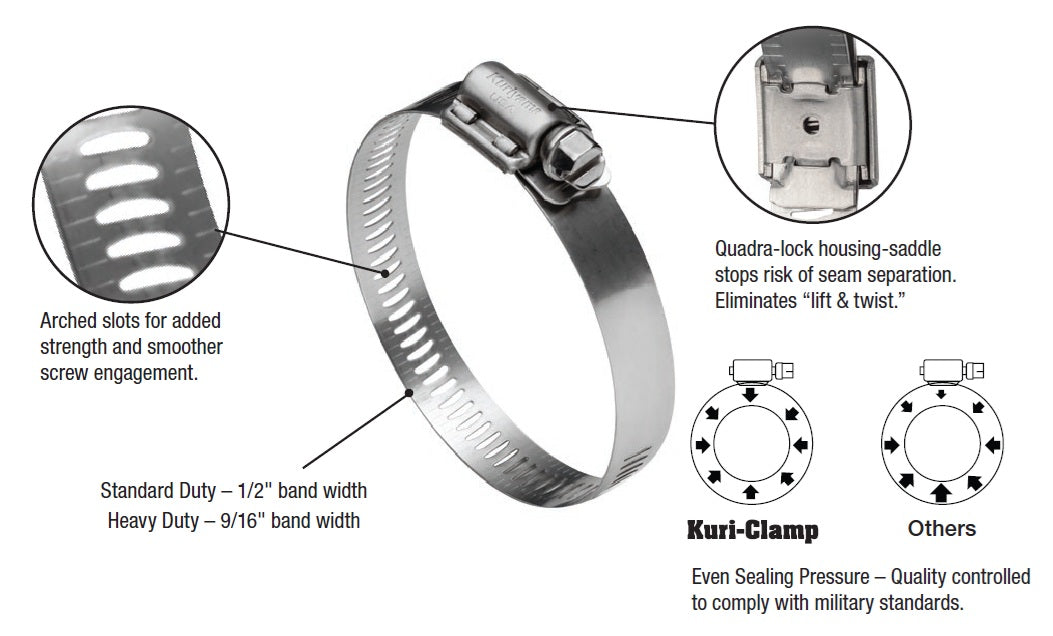

What are the Features?
- Three-piece Design - Streamlined, lightweight, three-piece design perfect for tight installations.
- Arched, Perforated Slots - Provides for more overall steel between perforations for added band strength and allows for smoother engagement.
- Stainless Steel Band - 300 series stainless steel band provides durability and superior corrosion resistance.
- Hex Screw - Sharply defined hex angles for better gripping power. More threads per screw results in increased torque strength.
- Meets Industry Standards - Clamps are SAE J1508 Type M and RoHS compliant.
- Torque Rating - Suggested installation torque of 10-15 inch pounds.
How is it Constructed?
- Three-piece construction.
- 5/16" wide, 300 series stainless steel band.
- Plated carbon steel hex screw with 1/4" head.
- One-piece, 300 series stainless steel housing.
