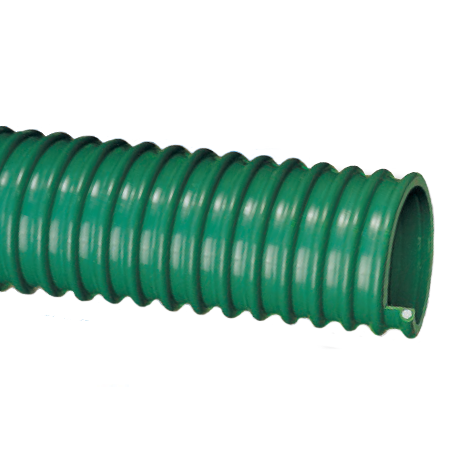

WG400X100 Tigerflex by Kuriyama | WG Series | Heavy Duty Liquid Suction Hose | 4" ID | PVC | 100ft Length
Kuriyama Tigerflex WG™ Series Heavy Duty PVC Liquid Suction Hose
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,673.11 |
| 8–14 | $1,601.91 |
| 15+ | $1,423.92 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
35
Tubing Construction:
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Application: | Fish suction, Irrigation lines, Trash, Pumps, Rental and construction dewatering, Rock dusting, Water Suction - heavy duty | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | -4 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(10) |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| WG150X100 | 1-1/2" | 38.1mm | 1.85" | 47.0mm | 50 PSI | 25 PSI | Full | 28 in.Hg | 2" | 100ft | 0.34 lbs |
| WG200X100 | 2" | 50.8mm | 2.40" | 61.0mm | 50 PSI | 25 PSI | Full | 28 in .Hg | 3" | 100ft | 0.52 lbs |
| WG300X100 | 3" | 76.2mm | 3.64" | 92.5mm | 45 PSI | 25 PSI | Full | 28 in .Hg | 6" | 100ft | 1.18 lbs |
| WG400X100 | 4" | 101.6mm | 4.76" | 120.9mm | 35 PSI | 18 PSI | Full | 28 in .Hg | 8" | 100ft | 1.93 lbs |
