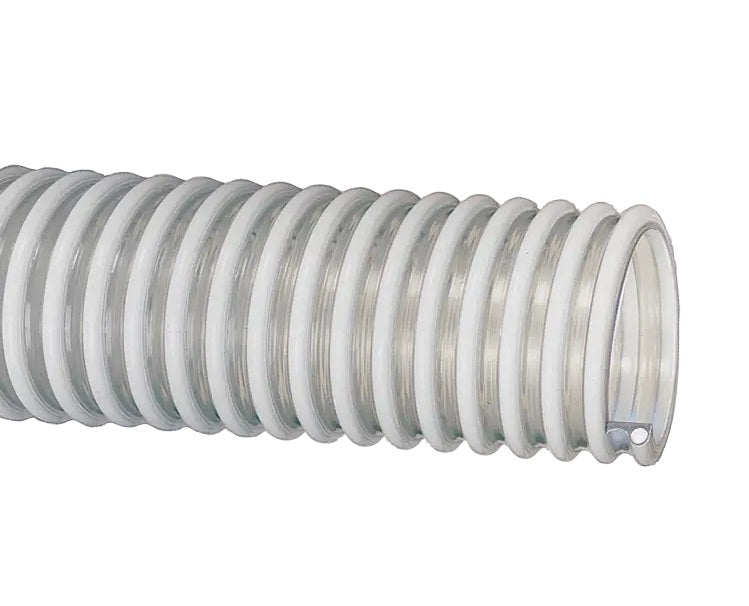

WBS400X50 Tigerflex® by Kuriyama | WBS™ Series | Food Grade Material Handling Hose with Charge Reducing Additives | PVC | 4" ID | 4.76" OD | 50ft Length

WBS400X50 Tigerflex® by Kuriyama | WBS™ Series | Food Grade Material Handling Hose with Charge Reducing Additives | PVC | 4" ID | 4.76" OD | 50ft Length

Sale price$1,334.55
p>Kuriyama of America Inc.
Tigerflex® | WBS™ Series | Food Grade Material Handling Hose with Charge Reducing Additives | PVC

Suitable for standard-duty food-grade material handling.

Ideal for for pharmaceutical product transfer and use with plastic processing and pneumatic conveying equipment.

Made in the USA.


Package Quantity: 50 Foot

Buy More, Save More!
Quantity Price Each
4–7 $1,254.48
8–14 $1,201.10
15+ $1,067.64
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tigerflex
Series:
  • WBS Series
Color(s):
  • White/Off-White & Clear/Semi-Clear
Applications: Food grade material handling - standard duty.
Pharmaceutical product transfer.
Plastic processing equipment.
Pneumatic conveying equipment.
Tube: Charge reducing PVC. Reinforcement: Rigid PVC helix.
Cover: - Service Temperature Range: -4°F (-20°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Specifications: BSE/TSE (02)
FDA (03)
Phthalate Free (10)
RoHS (11)
USDA (12)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Abrasion Resistant PVC Tube - Formulated from highly durable PVC compounds for increased abrasion resistance.
  • Food Grade Materials - Hose complies with applicable FDA(03) requirements. Hose complies with applicable USDA(12) requirements.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover - Provides increased hose fl exibility.
  • Charge Reducing Tube - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. Great for "nuisance" static that arises when transferring materials such as plastic pellets at moderate speeds.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
  • Note: The effectiveness of static dissipation is application-dependent, based upon humidity, material conveyed, and length of hose.
  • CAUTION: Hose is not to be used in combustible situations unless it has been determined by the end user the application is not sufficient to result in propagating brush discharge.
Part Number
50ft		 Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
- WBS150X100 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28 in Hg 28 in Hg 3" 0.35 lbs
- WBS200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4" 0.56 lbs
- WBS250X100 2-1/2" 63.5mm 2.99" 75.9mm 40 PSI 20 PSI 28 in Hg 24 in Hg 5" 0.77 lbs
- WBS300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 6" 1.10 lbs
WBS400X50 WBS400X100 4" 101.6mm 4.76" 121.0mm 35 PSI 20 PSI 24 in Hg 20 in Hg 10" 1.92 lbs
