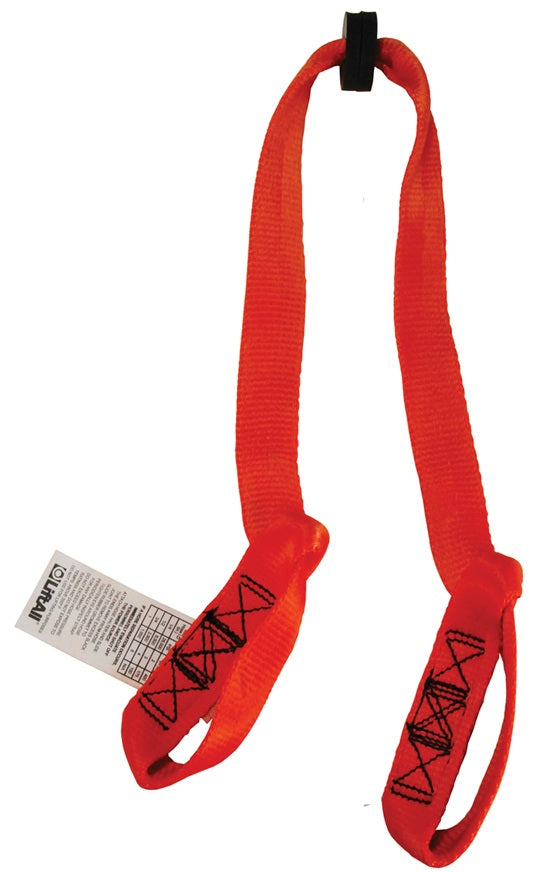

WBN230 by Dixon Valve | Nylon Safety Restraint | For 1/4" to 2" Hose ID | 2 Ply | 30" Length | Nylon
Dixon Valve
Safety Restraint | Nylon
Minimizes damage to equipment and injuries to operators in the event hose, couplings or clamps fail, or there is an accidental separation of the assembly.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $40.06 |
| 40–79 | $36.23 |
| 80+ | $31.97 |
Discounts applied in cart/checkout.
Product Data:
Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Features: | |||
|
|||
| Materials: | |||
|
|||
| Specifications: | |||
|
| Nylon Part Number |
Length | Recommended for use on the following hose inside diameters: | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 1/2" | 3/4" | 1" | 2" | 3" | 4" | 6" | ||
| Hose maximum working pressure (PSI) for above hose I.D. | |||||||||
| WBN130 | 30" | 26,000 | 6,500 | 2,900 | 1,650 | 400 | - | - | - |
| WBN140 | 40" | - | - | - | 1,650 | 400 | 175 | 100 | - |
| WBN230 | 30" | 52,000 | 13,000 | 5,800 | 3,300 | 750 | - | - | - |
| WBN244 | 44" | - | - | - | 3,300 | 750 | 350 | 200 | - |
| WBN264 | 64" | - | - | - | - | 750 | 350 | 200 | 90 |
| WBN344 | 44" | - | - | - | 7,300 | 1,800 | 820 | 450 | - |
| WBN364 | 64" | - | - | - | - | 1,800 | 820 | 460 | 200 |
| WBN464 | 64" | - | - | - | - | 2,300 | 1,040 | 580 | 260 |
