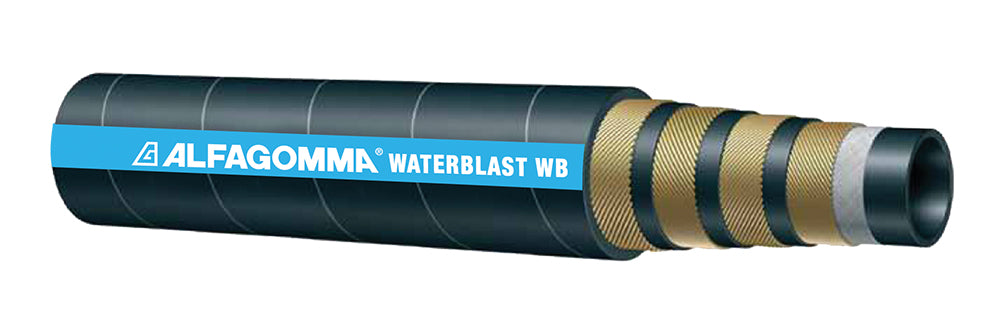

WB20-08 Alfagomma by Kuriyama | WB20 Series | Waterblast Hose | 4-Wire Spiral | 1/2" ID | 1.16" OD | 20,000 PSI | 50ft Length
Kuriyama of America Inc.
Alfagomma | WB20 Series | Waterblast Hose | 4-Wire Spiral
For high pressure water jetting.
Package Quantity: 50 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,215.71 |
| 8–14 | $1,163.98 |
| 15+ | $1,034.65 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
20000
Tubing Construction:
Cover Construction:
| Application: | High pressure water jetting. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | - | Tube: | Oil and water resistant synthetic rubber. |
| Reinforcement: | Four high tensile steel spirals and one steel braid. | Cover: | Oil, water and ozone resistant synthetic rubber. |
| Service Temperature Range: | Constant operation: +14°F (-10°C) to +158°F (+70°C) | Ambient Temperature: | - |
| Branding: | Dunlop Hiflex | ||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| WB20-08 | 1/2" | 13.0mm | 1.16" | 29.5mm | 20,000 PSI | 7.87" | 200mm | 0.97 lbs/ft |
* Minimum burst pressure: 2.5-to-1 safety factor.
